Type T 6 ft Beaded Thermocouple Sensor

Important Info

Overview

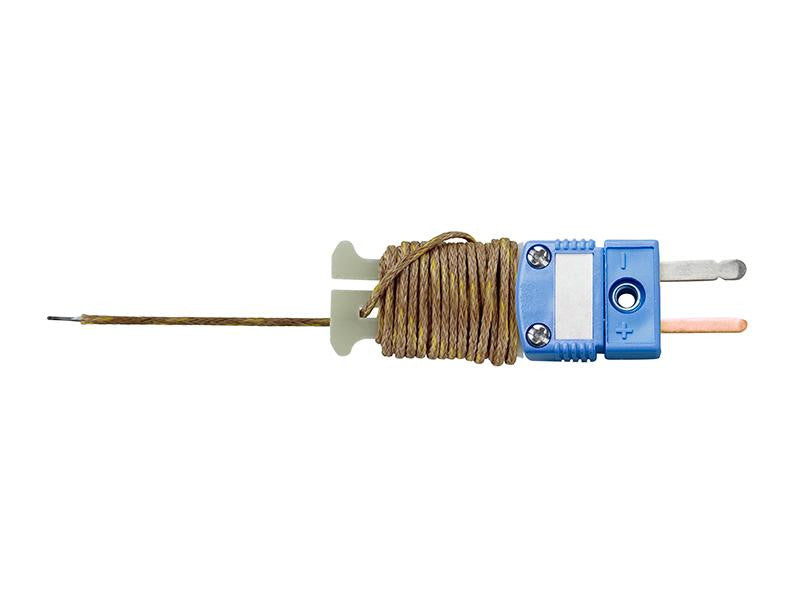

The Type T 6 ft Beaded Thermocouple probe includes 1.8m (6') of insulated 30-AWG wire wound on an integrated spool caddy /subminiature connector. Color-coded for type T (blue) thermocouples according to the ANSI standard, this probe is teflon-insulated and responsive over a range of -200 to 100°C (-328° to 212°F) with an initial accuracy of ±1.5°C (±2.7°F). Overall accuracy varies with attached logger.

Highlighted Features

• 30-AWG wire
• Teflon-insulated probe
• Responsive range of -200°C to -65°C (-330°F to -85°F)

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The TC6-T sensor supports the following measurement: Temperature

Specifications

Range:
-200 to 180°C (-330° to 356°F)
-65 to 130°C (-85° to 270°F)
130 to 180°C (270° to 356°F)
Initial accuracy: ±1.5°%* **, ±1.0°C (± 1.8°F), ±0.75%* ** ±data logger accuracy
Insulation: Type T Teflon

*Note: Teflon insulation is rated up to 200°C (400°F) continuous, and +250°C (+482°F) for 24 hours.

**Note: Percentage is in degrees above or below ice point (0°C or 32°F)
