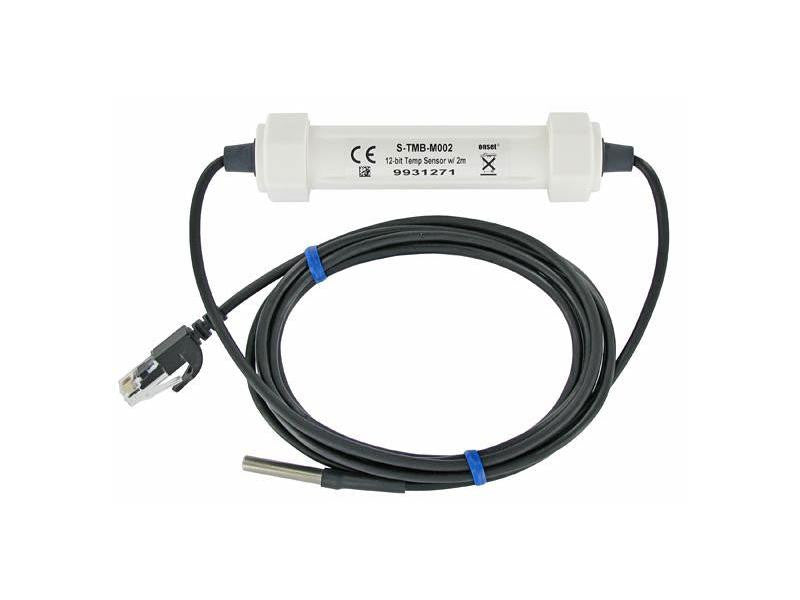

12-bit Temperature Smart Sensor (17 meter)
Overview
The 12-bit Temperature Smart Sensor provides < ± 0.2° C total accuracy (< ±0.36° F) and resolution of < ± 0.03° C (< ±0.054° F) over the range of from 0° to 50° C (32° to 122° F). The full measurement range is -40° to 100° C (-40° to 212° F). A selectable measurement-averaging feature further improves accuracy. Reliable service is assured by a stainless steel sensor tip and robust cable rated for immersion in water up to 50° C for up to 1 year. This model has a cable length of 2m.
Highlighted Features
- Measurement range of -40° to 100°C (-40° to 212°F)
- Stainless steel sensor tip
- Sensor and cable rated for immersion in water or soil up to 50°C for up to 1 year
In what environment does this sensor operate?
This sensor operates in indoor, outdoor and underwater environments.
What measurements does this sensor support?
This sensor supports the following measurements: Temperature and Water Temp
| Measurement range: | -40° to 100°C (-40° to 212°F) sensor tip* |
| Accuracy: | < ±0.2°C from 0° to 50°C (< ±0.36°F from 32° to 122°F) |
| Resolution: | < ±0.03°C from 0° to 50°C (< ±0.054°F from 32° to 122°F) |
| Drift: | < ±0.1°C (0.18°F) per year |
| Response time: | < 3 minutes typical to 90% in 1 m/sec air flow < 30 seconds typical to 90% in stirred water |
| Measurement averaging option: | Yes |
| Environmental rating: | Waterproof sensor tip and cable rated for 1-year immersion in water up to 50°C |
| Housing: | Stainless steel sensor tip |
| Dimensions: | 5.1 x 33 mm (0.2 x 1.3 inches) |
| Approximate weight: | 100 g (1 oz), 310 g (4 oz), 880 g (12 oz) "‚¬? varies with cable length |
| Cable lengths: | 2.0 m (6.6 ft), 6.0 m (19.7), 17 m (55.8ft) |
| Number of data channels: | 1 |
| Length of Smart Sensor network cable: | 0.5 m (1.6 ft) |
| * Sensor tip and cable immersion in fresh water up to 50°C (122°F) for one year. Cable electronics are rated for up to 75°C (167°F). Radiation Shield strongly recommended for use in sunlight (part # RS3) - The CE Marking identifies this product as complying with all relevant directives in the European Union (EU) |
|
