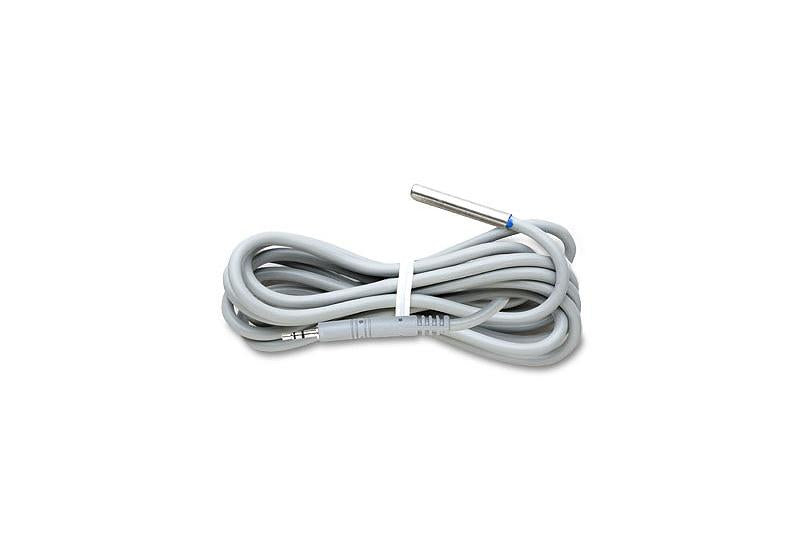

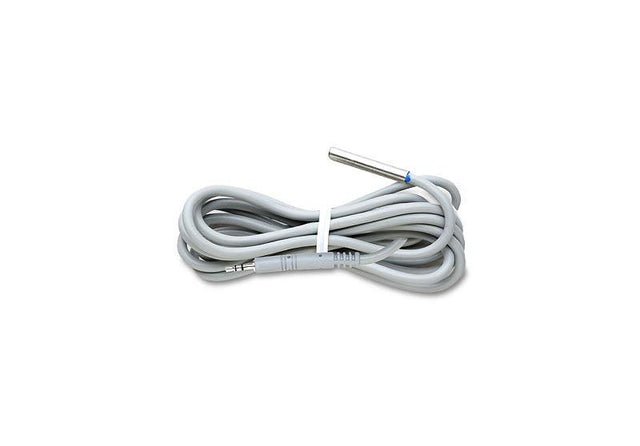

Air/Water/Soil Temperature (6' cable) Sensor
Overview
A temperature sensor for use with HOBO U-Series, UX120-006M external-channel data loggers or ZW series wireless data nodes. This model measures temperature in air, water, or soil. Accuracy and resolution vary according with attached logger model. Measurement range is -40° to 50°C (-40° to 122°F) in water or soil, -40° to 100°C (-40° to 212°F) in air; response time is minutes typical to 90% in air moving 1 m/sec (2.2 mph); response time in stirred water is 1 minute typical to 90%. This model sensor is attached to a 1.8m (6ft) cable.
Highlighted Features
- Plug directly into the external input jacks of U12, UX120, or ZW Family loggers to expand the range of measurement options and applications
In what environment does this sensor operate?
This sensor operates in indoor, outdoor and underwater environments.
What measurements does this sensor support?
The TMC6-HD sensor supports the following measurements: Temperature and Water Temperature
Measurement range: -40° to 50°C (-40° to 122°F) in water; -40° to 100°C (-40° to 212°F) in air
Accuracy:
w/U12: ±0.25°C from 0° to 50°C (±0.45°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum;
w/ZW: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum;
w/UX120-006M: ±0.15°C from 0° to 70°C (±0.27°F from 32° to 158°F), insert probe 2.3 cm (0.9 inches) minimum;
Resolution:
w/U12: 0.03° at 20°C (0.05° at 68°F);
w/ZW: 0.02°C at 25°C (0.04°F at 77°F);
w/UX120-006M: 0.002° at 25°C (0.003° at 77°F);
Drift: <0.1°C (<0.2°F) per year
Response time in air: 2 min. typical to 90% in air moving 1 m/sec (2.2 mph)
Response time in stirred water: 30 sec. typical to 90%.
Operating range: Sensor tip and cable immersion in fresh water up to +50°C (122°F) for 1 year
Housing: Copper-plated sensor tip
Dimensions: 5.1 x 33 mm (0.2 x 1.3 inches)
Weight: 34 g (1.1 oz)
USB Data Loggers - requires external sensor(s)
U12-008 4-Channel External Data LoggerUX120-006M 4-Channel Analog Data Logger
USB Data Loggers - optional external sensors
U12-012 Temperature/Relative Humidity/Light/External Data LoggerU12-013 Temperature/Relative Humidity/2 External Channel Data Logger
Wireless Data Nodes - via receiver/USB
ZW-005 Four-Channel Data NodeZW-006 Four Analog Port Data Node
ZW-007 Temperature/Relative Humidity/2 External Channels Data Node
ZW-008 Four External Channel Data Node
