Type K 6 ft Beaded Thermocouple Sensor

Sensors

Type K 6 ft Beaded Thermocouple Sensor

  • Vendor:Onset

Availability: Available Item
$44.00
Qty Price
Buy 1 $44.00 ea
Buy 10 $41.80 ea

Overview

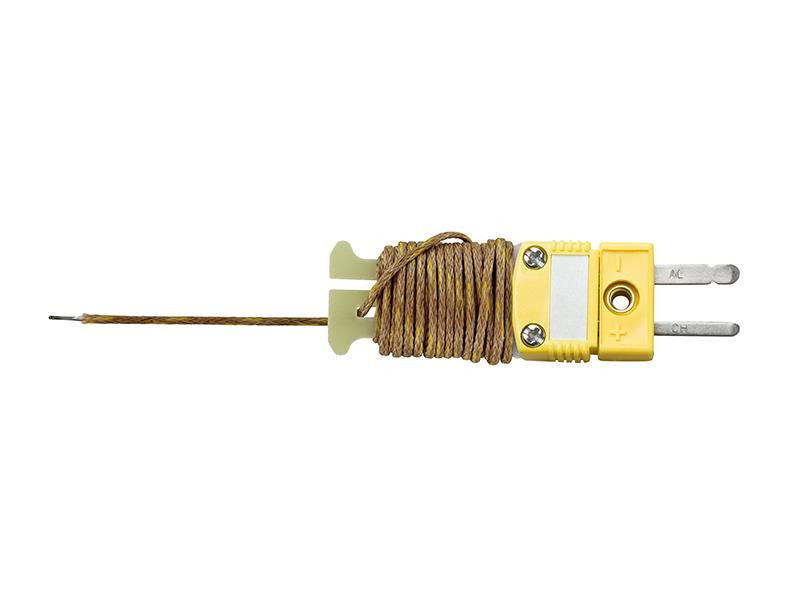

The Type K 6 ft Beaded Thermocouple probe includes 1.8m (6 feet) of insulated 30-AWG wire wound on an integrated spool caddy /sub miniature connector. Color-coded for type K (yellow) thermocouples according to the ANSI standard.

Highlighted Features

  • Insulated 30-AWG wire
  • Insulated with glass braid
  • Responsive range of 0°C to 285°C (32°F to 545°F)

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The TC6-K sensor supports the following measurement: Temperature

Range:
0 to 285°C (32° to 545°F)
285 to 482°C (545° to 900°F)
Accuracy:
+/- 0.75%*°C (+/- 4°F)
+/- 2.2°C (+/- 4°F)
±data logger accuracy
Insulation: Glass Braid

*Note: Glass braid is rated up to 482°C (900°F) continuous, and 537°C (1000°F) for single exposure.
