Type J 6 ft Beaded Thermocouple - Range 0 to 250C (32 to 482F) Sensor

SKU:
Vendor:Onset

Availability: Available Item

$29.00

Quantity :

Qty	Price
Buy 1	$29.00 ea
Buy 10	$27.55 ea

Important Info
Specifications

Overview

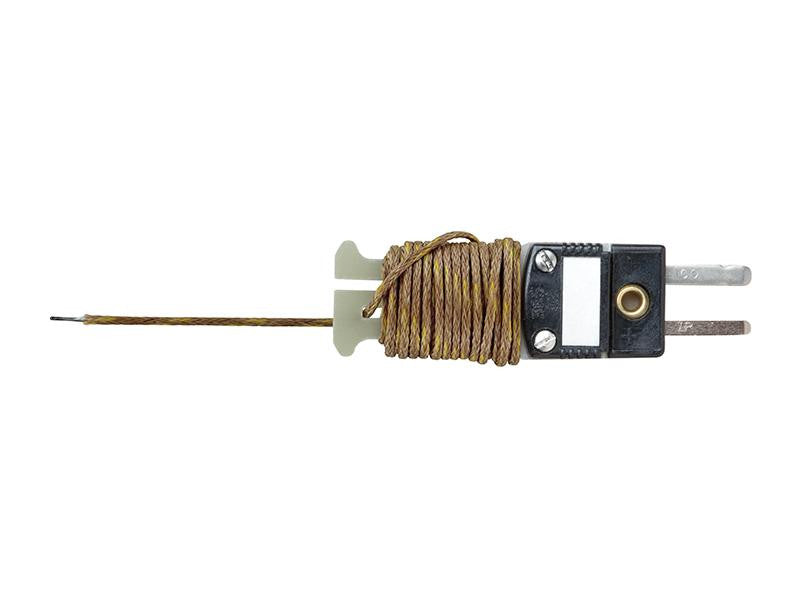

The Type J 6 ft Beaded Thermocouple probe includes 1.8m (6') of insulated 30-AWG wire wound on an integrated spool caddy /subminiature connector. Color-coded for type J (black) thermocouples according to the ANSI standard.

Highlighted Features

Insulated 30-AWG wire
Teflon-insulated
Responsive range of 0°C to 250°C (32°F to 482°F)

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The TC6-J sensor supports the following measurement: Temperature

Range: 0 to 250°C (32° to 482°F)
Initial accuracy: +/- 2.2°C (+/- 4°F) ±data logger accuracy
Insulation: Type J TEFLON insulation

Note: Teflon insulation is rated up to 200°C (400°F), continuous, and 250°C (482°F) for 24 hours
