HOBO Rain Gauge (Metric) Data Logger

  • Vendor:Onset

Availability: In Stock
$534.00
Qty Price
Buy 1 $534.00 ea
Buy 10 $493.95 ea

Overview

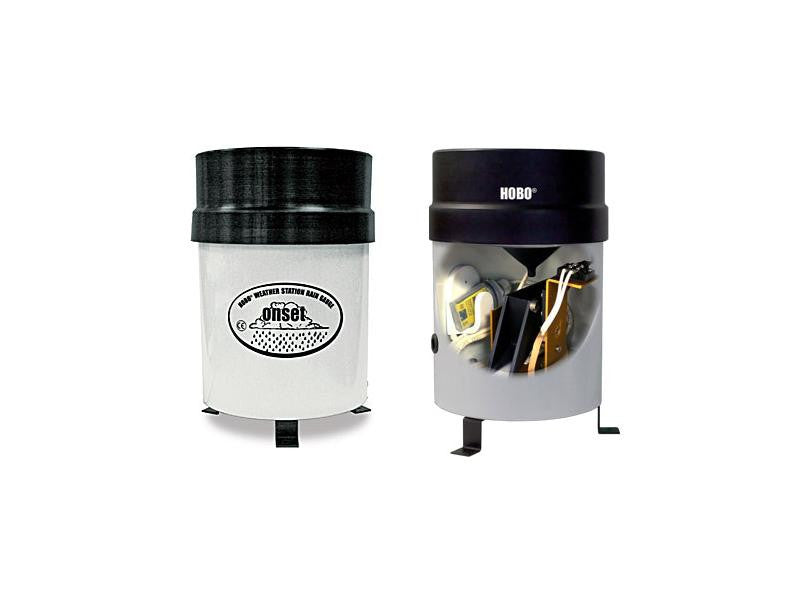

The Data Logging Rain Gauge is a battery-powered rainfall data collection and recording system which includes a HOBO Pendant Event data logger integrated into a tipping-bucket rain gauge. This model automatically records up to 3200 mm of rainfall data that can be used to determine rainfall rates, times and duration. Also records temperature when used with an optional solar radiation shield (RS1 Solar Radiation Shield, or M-RSA). A base station or shuttle is required.

Highlighted Features

  • A high quality tipping-bucket rain gauge includes a HOBO Pendant Event data logger. Base station or shuttle is required.
  • Time and date stamp is stored for each tip - provides detail needed to determine rainfall rates and duration.
  • Reliable, field-proven rain gauge.
  • Compatible with HOBOware and HOBOware Pro software for logger setup, graphing and analysis.
  • Also records temperature when used with an optional solar raditation shield.

In what environment does this data logger operate?

This data logger operates in an outdoor environment.

What measurements does this data logger support?

The RG3-M data logger supports the following measurement: Rainfall

Rain Gauge
Maximum rainfall rate: 12.7 cm (5 in.) per hour
Calibration accuracy: ±1.0% (up to 1 in./hour for the RG3 or 20 mm/hour for the RG3-M)
Resolution: 0.01 in. (RG3) or 0.2 mm (RG3-M)
Calibration: Requires annual calibration: can be field calibrated or returned to the factory for re-calibration
Operating temperature range: 0° to +50°C (+32° to +122°F)
Storage temperature range: -20° to +70°C (-4° to +158°F)
Environmental rating: Weatherproof
Housing: 15.24cm (6-in.) aluminum bucket
Tipping bucket mechanism: Stainless steel shaft with brass bearings
Dimensions: 25.72 cm height x 15.24 cm diameter (10.125 x 6 in.); 15.39 cm (6.06 in.) receiving orifice
Weight: 1.2 Kg (2.5 lbs)
Part numbers: RG3 (0.01 in. per tip), RG3-M (0.2 mm per tip)
Logger
Time stamp resolution: 1.0 second
Time accuracy: ± 1 minute per month at 25°C (77°F), see Plot B on page 10.
Operating range: -20° to 70°C (-4° to 158°F)
Environmental rating (for logger used outside of rain gauge): Tested to NEMA 6 and IP67; suitable for deployment outdoors
NIST traceable certification: Available for temperature only at additional charge; temperature range -20° to 70°C (-4° to 158°F)
Battery: CR-2032 3V lithium battery; 1 year typical use
Memory: 64K bytes – 16K to 23K tips when recording rain only; 25K to 30K data points when recording rain and temperature
Materials: Polypropylene case; stainless steel screws; Buna-N o-ring; PVC cable insulation
Temperature Measurement
Measurement range: -20° to 70°C (-4° to 158°F)
Accuracy: ± 0.47°C at 25°C (± 0.85°F at 77°F), A solar radiation shield is required for accurate temperature measurements in sunlight.
Resolution: 0.10°C at 25°C (0.18°F at 77°F)
Drift: Less than 0.1°C/year (0.2°F/year)
Response time: Available for temperature only at additional charge; temperature range -20° to 70°C (-4° to 158°F)
The CE Marking identifies this product as complying with the relevant directives in the European Union (EU).
SOFTWARE
Graphing & Analysis
  • BHW-PRO HOBOware Pro CD or USB Drive (USB Cable Included) Software
  • BHW-PRO-DLD HOBOware Pro - Mac/Win (Download Only) Software
COMMUNICATIONS
Data Offload - Base Stations - Shuttles - Couplers
  • BASE-U-1 Optic USB Base Station for Pendant
  • BASE-U-4 Optic USB Base Station
  • U-DTW-1 HOBO Waterproof Shuttle
MAINTENANCE
Batteries Desiccants
  • DESICCANT5 Desiccant Replacement Pack for UA-003 Replacement
ACCESSORIES
Carrying Case Data Offload - Base Stations - Shuttles - Couplers
  • COUPLER-UA Replacement Pendant Coupler for the BASE-U-1 Replacement
  • COUPLER2-A A Replacement Coupler for BASE-U-4 Replacement
