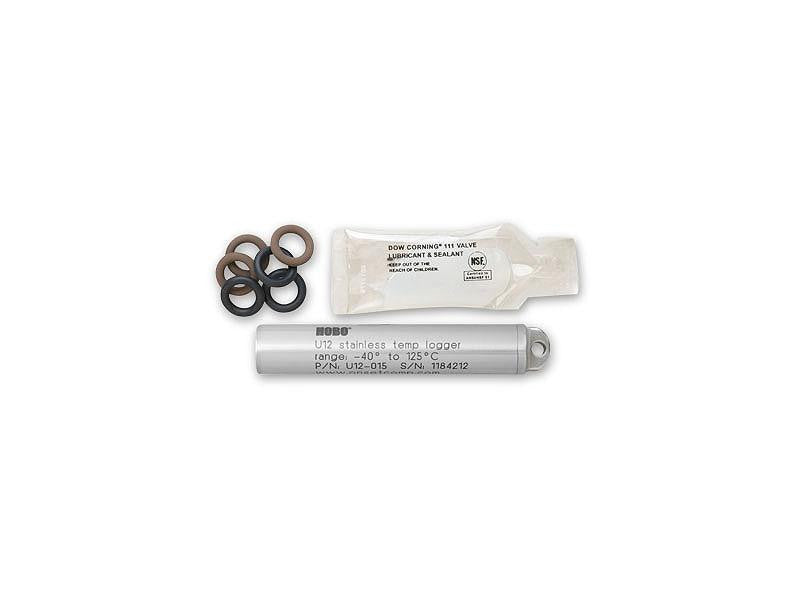

HOBO Stainless Temperature (4,900 ft.) Data Logger

Data Loggers

HOBO Stainless Temperature (4,900 ft.) Data Logger

  • Vendor:Onset
Availability: In Stock
$354.00
Qty Price
Buy 1 $354.00 ea
Buy 10 $327.45 ea

HOBO data loggers require HOBOware software (USB interface cable included w/CD purchase) and a communications device. See compatible items below.

Overview

The HOBO U12 Stainless Temperature Data Logger is ideal for food, pharmaceutical, autoclave, and other applications where high-accuracy temperature data is critical. With its broad temperature range (-40 to 125C) and food-grade stainless steel housing, the U12 Stainless Temperature Data Logger withstands process conditions from pasteurization to flash freezing and washdown. The U12 Stainless is also ideal for high-temperature or deep underwater applications.

Highlighted Features

  • Food-grade 316 Series Stainless Steel
  • High-accuracy, extended temperature range
  • Suitable for high pressure applications to 2200psi
  • Fast readout via direct USB interface
  • Compatible with HOBOware and HOBOware Pro for logger setup, graphing and analysis

In what environment does this data logger operate?

This data logger operates in indoor, outdoor and underwater environments.

What measurements does this data logger support?

The U12-015 data logger supports the following measurement: Temperature

Measurement range: -40° to 125°C (-40° to 257°F)
Accuracy: ± 0.25°C from 0° to 50°C (± 0.45°F from 32° to 122°F), see Plot A in manual
Resolution: 0.03°C at 25°C (0.05°F at 77°F), see Plot A
Drift: 0.05°C/year + 0.1°C/1000 hrs above 100°C (0.09°F/year + 0.2°F/1000 hrs above 212°F)

Response time in 1 m/s (2.2 mph) airflow
U12-015: < 10 minutes, typical to 90%
U12-015-02: 2.25 minutes, typical to 90%

Response time in water
U12-015: < 3.5 minutes, typical to 90%
U12-015-02: 20 seconds, typical to 90%

Time accuracy: ± 2 minute per month at 25°C (77°F), see Plot B in manual
Operating environment: Air, water, steam, 0 to 100% RH

Operating temperature
Logging: -40° to 125°C (-40° to 257°F)
Launch/readout: 0° to 50°C (32° to 122°F), per USB specification

Battery life: 3 year typical use, factory replaceable
Memory: 64K bytes (43,000 12-bit measurements)
Construction: Food-grade 316 Series Stainless Steel

Weight
U12-015: 72 g (2.5 oz)
U12-015-02: 82 g (2.9 oz)

Logger dimensions: 17.5 x 101.6 mm (0.69 x 4.00 inches)
Probe dimensions: (U12-015-02 only): 4 x 124 mm (0.16 x 4.90 inches)
Pressure/depth rating: 2200 psi (1500 m/4900 ft) maximum
Vibration rating: Navy spec: NAVMAT P-9492 (non-probe model only)
NIST certificate: Available for additional charge; temperature range -30° to 120°C (-22° to 248°F)
