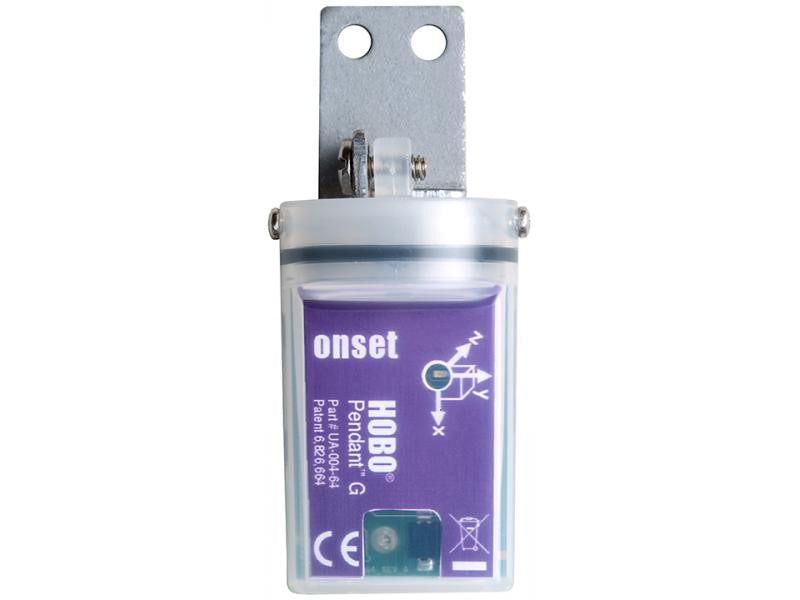

HOBO Pendant G Data Logger

Data Loggers

HOBO Pendant G Data Logger

  • Vendor:Onset

Availability: In Stock
$106.00
Qty Price
Buy 1 $106.00 ea
Buy 10 $98.05 ea

Overview

Measure 3-dimensional motion, such as sports activity or medical therapy compliance with the HOBO Pendant G data logger. With this logger, users can measure acceleration and angular displacement in 1, 2 or 3 axes. Use this data to monitor activity and improve performance.

Highlighted Features

  • Low-cost acceleration and tilt measurement
  • Waterproof housing for wet or underwater use
  • Data readout in less than 30 seconds via fast Optic USB interface

In what environment does this data logger operate?

This data logger operates in indoor, outdoor and underwater environments.

What measurements does this data logger support?

The UA-004-64 data logger supports the following measurements: Acceleration and Tilt



Measurement Range: ± 3 g; 29.4 m/s² (96.5 ft/s²)
Accuracy: ± 0.075 g; 0.735 m/s² (2.41 ft/s²) at 25°C (77°F); ± 0.105 g; 1.03 m/s² (3.38 ft/s²) from -20°C to 70°C (-4°F to 158°F)
Resolution: 0.025 g; 0.245 m/s² (0.8 ft/s²)
Logging Interval
In Normal mode: 1 second to 18 hours, 12minutes, 15 seconds
In Fast mode: 0.01 seconds (100 Hz) to 0.99 seconds (1.01 Hz)
Time accuracy: ± 1 minute per month at 25°C (77°F)
Operating Range
In water/ice: -20° to 50°C (-4° to 122°F)
In air: -20° to 70°C (-4° to 158°F)
Water depth rating: 30 m from -20° to 20°C (100 ft from -4° to 68°F)
Battery life
In Normal mode: 1 year typical use
In Fast mode: 7 days logging at 0.01 seconds (100 Hz)
Battery Type: CR2032
Memory: 64K bytes (approximately 21.8K combined x-, y-, and z-axis readings or events)
Materials: Polypropylene case; stainless steel screws; Buna-N o-ring
Weight: 18 g (0.6 oz)
Dimensions: 58 x 33 x 23 mm (2.3 x 1.3 x 0.9 inches)
The CE Marking identifies this product as complying with the relevant directives in the European Union (EU).
SOFTWARE
Graphing & Analysis
  • BHW-PRO HOBOware Pro CD or USB Drive (USB Cable Included) Software
  • BHW-PRO-DLD HOBOware Pro - Mac/Win (Download Only) Software

COMMUNICATIONS
Data Offload - Base Stations - Shuttles - Couplers
  • BASE-U-1 Optic USB Base Station for Pendant
  • BASE-U-4 Optic USB Base Station
  • U-DTW-1 HOBO Waterproof Shuttle
MAINTENANCE
Batteries Case Replacement Kit
  • UA-PARTSKIT Pendant Replacement Parts Kit Replacement
Desiccants
  • DESICCANT1 Small Desiccant Pack (25-count) Replacement
ACCESSORIES
Carrying Case Data Offload - Base Stations - Shuttles - Couplers
  • COUPLER-UA Replacement Pendant Coupler for the BASE-U-1 Replacement
  • COUPLER2-A A Replacement Coupler for BASE-U-4 Replacement
