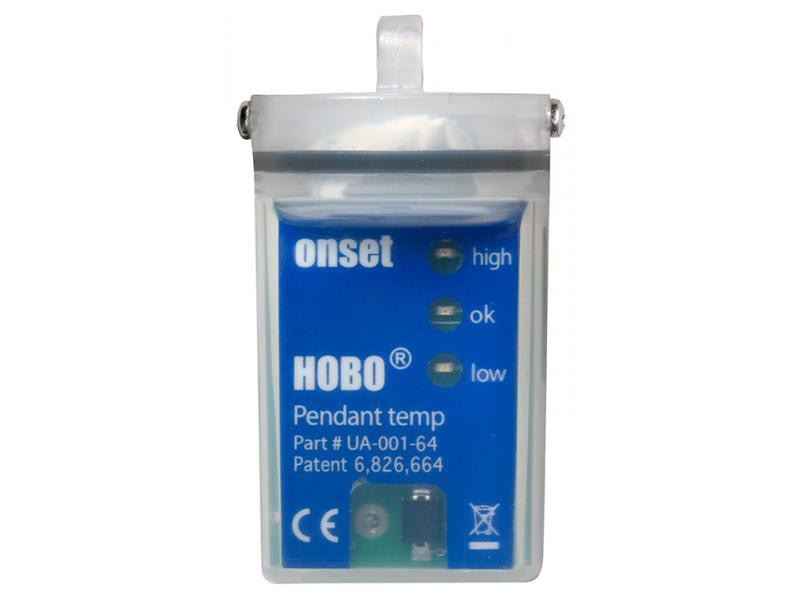

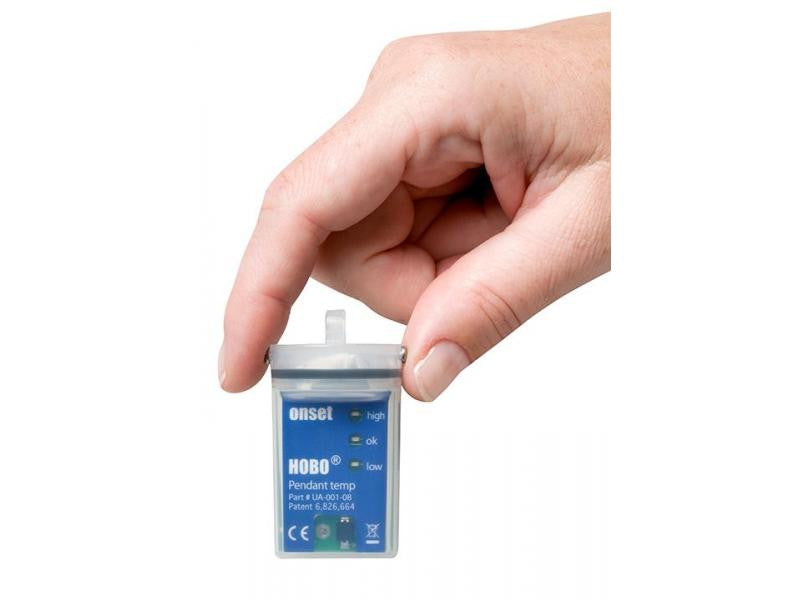

A miniature, waterproof one-channel temperature data logger, this model is value-priced for short-term shipping applications or long-term deployment. Data logger alarm LEDs flash if temperatures have exceeded user-set levels and delay options, and provide visible verification that temperatures have been within the desired range throughout deployment. This 64K model stores approximately 52K of 10-bit temperature readings. For accurate temperature measurement in sunlight a solar radiation shield is required (RS1 Solar Radiation Shield, assembly required; M-RSA pre-assembled Solar Radiation Shield).
- Low-cost temperature with alarm indication or light intensity
- Waterproof housing for wet or underwater use
- Data readout in less than 30 seconds via fast Optic USB interface
In what environment does this data logger operate?
This data logger operates in indoor, outdoor and underwater environments.
What measurements does this data logger support?
The UA-001-64 data logger supports the following measurements: Temperature and Water Temp
Measurement range: -20° to 70°C (-4° to 158°F)
Alarms: High and low alarms can be configured for total amount of contiguous or non-contiguous time outside of user-defined limits between -20° and 70°C (-4° to 158°F)
Accuracy: ± 0.53°C from 0° to 50°C (± 0.95°F from 32° to 122°F), see Plot A
Resolution: Temperature: 0.14°C at 25°C (0.25°F at 77°F), see Plot A
Drift: Less than 0.1°C/year (0.2°F/year)
Airflow of 2 m/s (4.4 mph): 10 minutes, typical to 90%
Water: 5 minutes, typical to 90%
Time accuracy: ± 1 minute per month at 25°C (77°F), see Plot B
In water/ice: -20° to 50°C (-4° to 122°F)
In air: -20° to 70°C (-4° to 158°F)
Water depth rating: 30 m from -20° to 20°C (100 ft from -4° to 68°F), see Plot C
NIST traceable certification: Available for temperature only at additional charge; temperature range -20° to 70°C (-4° to 158°F)
Battery life: 1 year typical use
UA-001-08: 8K bytes (approximately 6.5K sample and event readings)
UA-001-64: 64K bytes (approximately 52K sample and event readings)
Materials: Polypropylene case; stainless steel screws; Buna-N o-ring
Weight: 15.0 g (0.53 oz)
Dimensions: 5.8 x 3.3 x 2.3 (centimeters) and 2.3 x 1.3 x 0.9 (inches)
The CE Marking identifies this product as complying with the relevant directives in the European Union (EU).
