HOBO H22 Energy Data Logger

Data Loggers

HOBO H22 Energy Data Logger

  • Vendor:Onset

Availability: In Stock
$463.00
Qty Price
Buy 1 $463.00 ea
Buy 10 $428.28 ea

The H22-001 Energy Logger requires HOBOware software and part # ADAPT-SER-USB interface cables. See compatible items below.

Overview

Monitor energy and industrial equipment with this 15-channel data logger (Part # H22-001). With multiple channels, energy and facility managers can quickly and easily detect and address a variety of issues relating to HVAC, machinery, and other systems.  The HOBO H22-001 Energy Data Logger is modular and more economic than its alternatives because a toolbox full of data loggers is not necessary.

Deploy this product with a variety of pre-defined plug-and-play smart sensors to create a robust monitoring system. Compatible with HOBOware software, researchers can conduct effective data analysis in minutes.

Highlighted Features

  • Onset's most flexible data logger records up to 15 channels of over a dozen measurements
  • Provides 12v excitation for third-party sensors
  • Pre-configured smart sensors get you started fast

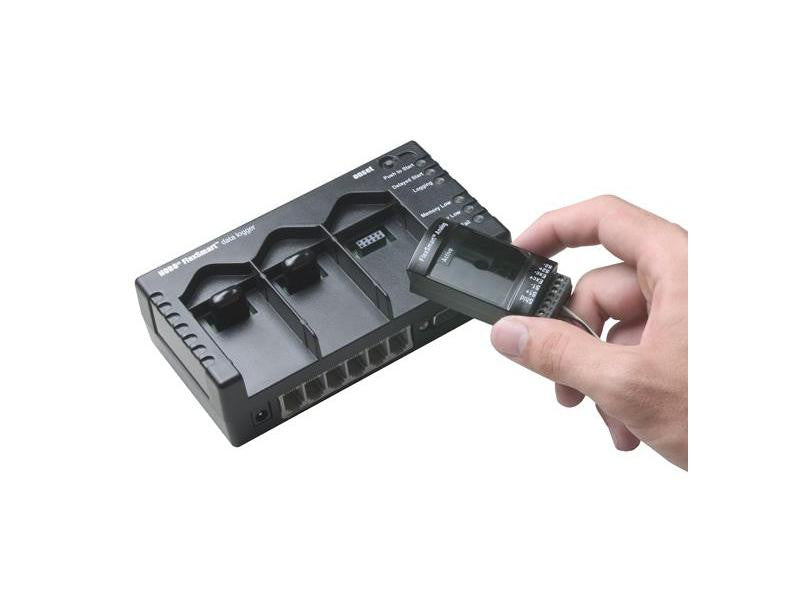

  • Signal conditioning modules retain configurations until you change them, providing plug-and-play convenience for commonly used sensors
  • Flexible power options include battery operation for AC power adapter

In what environment does this data logger operate?

This data logger operates in an indoor environment.

What measurements does this data logger support?

The H22-001 data logger supports the following measurements: 4-20mA, AC Current, AC Voltage, Air Velocity, Amp Hour (Ah), Carbon Dioxide, Compressed Air Flow, DC Current, DC Voltage, Differential Pressure, Gauge Pressure, Kilowatt Hours (kWh), Kilowatts (kW), Power Factor (PF), Pulse Input, Relative Humidity, Temperature, Volatile Organic Comp., Volt-Amp Reactive, Volt-Amp Reactive hour, Volt-Amps (VA), Water Flow, Watt Hours (Wh), Watts (W) and Wind

Operating range: -20° to 50°C (-4° to 122°F) with alkaline batteries
-40° to 60°C (-40° to 140°F) with lithium batteries
Sensor inputs: Three FlexSmart multi-channel modules and up to 6 Smart Sensors (which may have multiple parameters/channels)

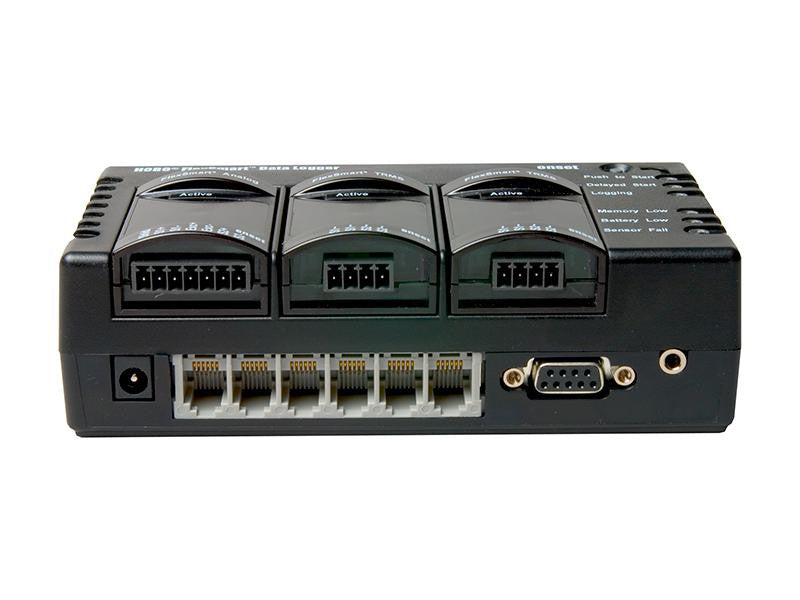

Sensor connectors: Six RJ-12 Smart Sensor jacks plus 3 FlexSmart module slots
Communication: RS-232 via 3.5 mm serial port or/and 9-pin D-Sub connector
Dimensions: 15.6 cm x 8.4 cm x 4.6 cm (6.13" x 3.31" x 1.81")
Weight: 435 g (15.23 oz) with batteries 238 g (8.33 oz) without batteries
Memory: 512K nonvolatile flash data storage
Memory modes: Stop when full; wrap when full
Operational indicators: Six indicators provide logging and sensor network status
Logging interval: One second to 18 hours, user-specified interval (2-second minimum for two-channel S-FS-TRMSA operation)
Sensor excitation: 12 V DC at 200 mA total, with user-programmable warmup time on a per-channel basis
Battery life: One year typical use (up to 75 mA excitation with 10-minute or longer logging Interval and 1-second warmup time)
Battery type: Eight standard AA alkaline batteries included (for operating conditions -20°C/-4°F to 50°C/122°F); optional AA lithium batteries available for operating conditions of -40° to 60°C (-40° to 140°F).
External power: Supports optional 13.6 V DC regulated AC Wall Adapter Connector. Internal batteries may remain installed. Alternatively, an automotive battery or 9-12 V DC regulated Wall Adapter may be used, but it is recommended to remove the internal batteries since they will discharge to the level of the external supply.
Time accuracy: 0 to 2 seconds for the first data point and ±5 seconds per week at 25°C (77°F)
Logging mode: Immediate, timed delay, or trigger (button-push) start options; supports sampling intervals for some sensors
Data communication: Current readings while logging; read out while logging; read out when stopped



SOFTWARE
Graphing & Analysis
  • BHW-PRO HOBOware Pro CD or USB Drive (USB Cable Included) Software
  • BHW-PRO-DLD HOBOware Pro - Mac/Win (Download Only) Software
COMPATIBLE SENSORS
4-20 mA AC Current
T-ACT-0750-020 20 Amp Accu-CT Split-Core Current Transformer 333mV Sensor
  • T-ACT-0750-050 50 Amp Accu-CT Split-Core Current Transformer 333mV Sensor
  • T-ACT-0750-100 100 Amp Accu-CT Split-Core Current Transformer 333mV Sensor
  • T-ACT-0750-250 250 Amp Accu-CT Split-Core Current Transformer 333mV Sensor
  • T-MAG-0400-05 5 AMP Mini Split-core AC Current Transformer Sensor
  • T-MAG-0400-20 20 AMP Mini Split-core AC Current Transformer Sensor
  • T-MAG-0400-50 50 AMP Mini Split-core AC Current Transformer Sensor
  • T-MAG-0400-75 75 AMP Mini Split-core AC Current Transformer Sensor
  • T-MAG-SCT-100 100 AMP Split-core AC Current Transformer Sensor
  • T-MAG-SCT-200 200 AMP Split-core AC Current Transformer Sensor
  • T-MAG-SCT-600 600 AMP Split-core AC Current Transformer Sensor
    AC Voltage
    • T-MAG-SPT-150 150 Volt AC Potential Transformer Sensor
    • T-MAG-SPT-300 300 Volt AC Potential Transformer Sensor
    • T-MAG-SPT-600 600 Volt AC Potential Transformer Sensor
      Air Velocity
      • T-DCI-F900-L-O Air Velocity (.15 to 5 m/s) (30 to 985 fpm) Sensor
      • T-DCI-F900-L-P Air Velocity (0.15 to 10 m/s) (30 to 1969 fpm) Sensor
      • T-DCI-F900-S-O Air Velocity (0.15 to 5 m/s) (30 to 985 fpm) Sensor
      • T-DCI-F900-S-P Air Velocity Sensor (0.15 to 10 m/s) (30 to 1969 fpm) Sensor
      AC Current, AC Voltage, Amp Hour, Kilowatts, Power Factor, Reactive Power, Volt-Amp Reactive Hour, Volt-Amps, Watt Hours, Watts Barometric Pressure Carbon Dioxide Compressed Air Flow DC Current DC Voltage (0-2.5v, 5v, 10v)
      • S-FS-CVIA FlexSmart Analog Module (2 channels) Sensor
      Differential Pressure
      • T-VER-PXU-L Differential Air Pressure Transducer Sensor
      • T-VER-PXU-X Differential Air Pressure Transducer Sensor
      Gauge Pressure
      • T-ASH-G2-100 Ashcroft (100-psig) Gauge Pressure Sensor
      • T-ASH-G2-200 Ashcroft (200-psig) Gauge Pressure Sensor
      • T-ASH-G2-500 Ashcroft (500-psig) Gauge Pressure Sensor
      Kilowatt Hours
      • T-VER-8051-300 Veris Kilowatt Hour Transducer 1-Phase, 300 Amp Sensor
      • T-VER-8053-800 Veris Kilowatt Hour Transducer 3-Phase, 800 Amp Sensor
      • T-VER-E50B2 E50B2 Power & Energy Meter Sensor
      • T-WNB-3D-240 WattNode 208/240 VAC 3-phase Delta/Wye kWh Transducer Sensor
      • T-WNB-3D-480 WattNode 480 VAC 3-phase Delta/Wye kWh Transducer Sensor
      • T-WNB-3Y-208 WattNode 208/240 VAC 1,2, or 3 Phase Wye kWh Transducer Sensor
      • T-WNB-3Y-208-P WattNode 208-240VAC 2 or 3 Branch Circuit kWh Transducer Sensor
      Kilowatts Light Intensity
      • S-LIA-M003 Photosynthetic Light (PAR) Smart Sensor
      • S-LIB-M003 Solar Radiation (Silicon Pyranometer) Smart Sensor
      Pulse Input
      • S-UCC-M001 Electronic Switch Pulse Input Adapter - 1 meter Sensor
      • S-UCC-M006 Electronic Switch Pulse Input Adapter - 6 meters Sensor
      • S-UCD-M001 Contact Closure Pulse Input Adapter - 1 meter Sensor
      • S-UCD-M006 Contact Closure Pulse Input Adapter - 6 meters Sensor
      Rainfall
      • S-RGA-M002 0.01" Rain Gauge (2m cable) Smart Sensor
      • S-RGB-M002 0.2 mm Rainfall (2m cable) Smart Sensor
      Relative Humidity
      • S-THB-M002 12-bit Temperature/Relative Humidity (2m cable) Smart Sensor
      • S-THB-M008 12-bit Temperature/Relative Humidity (8m cable) Smart Sensor
      Temperature
      • S-TMB-M002 12-Bit Temperature (2m cable) Smart Sensor
      • S-TMB-M006 12-Bit Temperature (6m cable) Smart Sensor
      • S-TMB-M017 12-Bit Temperature (17 m cable) Smart Sensor
      Volatile Organic Compound
      • T-ION-TVOC Volatile Organic Compound (VOC) Sensor
      Water Flow Wind COMMUNICATIONS
      Communication Cables
      Data Offload - Base Stations - Shuttles - Couplers MAINTENANCE Batteries Spares Kit ACCESSORIES AC Power
      • P-AC-1 AC Power Adapter Adapter
      Cable Adapters - Splitters
      • S-ADAPT-5 1-to-2 sensor communication adapter Adapter
      • S-ADAPT-6 Smart Sensor Consolidator Box Adapter
      Carrying Case Compliance Certificates
      • COMPLIANCE CERT Compliance Certification
      Mounting Accessories
      • A-H22-DINMOUNT-1 DIN Mounting Feet Kit
      • A-H22-MOUNT-1 HOBO H22 Energy Logger Mount Feet Kit
      Wind Sensor Adapters
      • S-WCB-M003 R.M. Young Wind Monitor-AQ (model 05305) Adapter
      • S-WCC-M003 R.M. Young Marine Wind Monitor (model 05106) Adapter
      • S-WCE-M003 R.M. Young Wind Monitor for Wind/Alpine (model 05103) Adapter
