HOBO data loggers require HOBOware software (USB interface cable included w/CD purchase) and a communications device. See compatible items below.

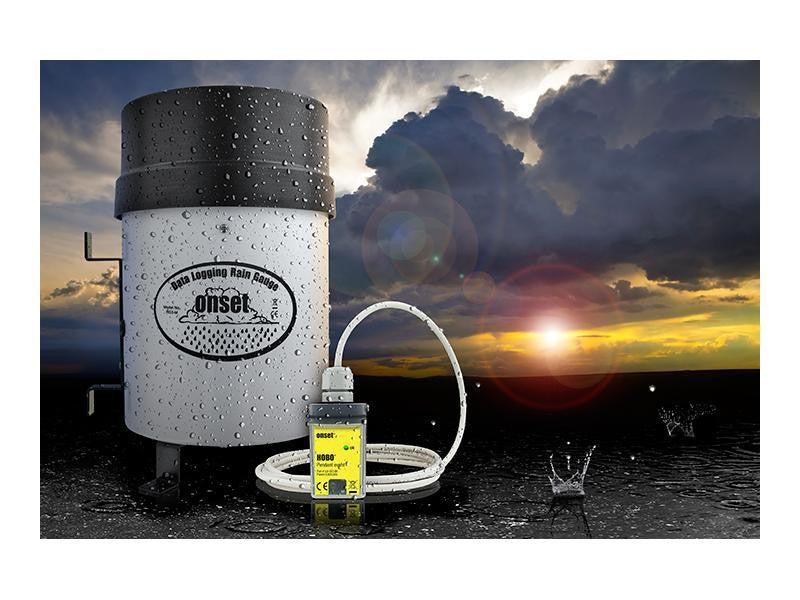

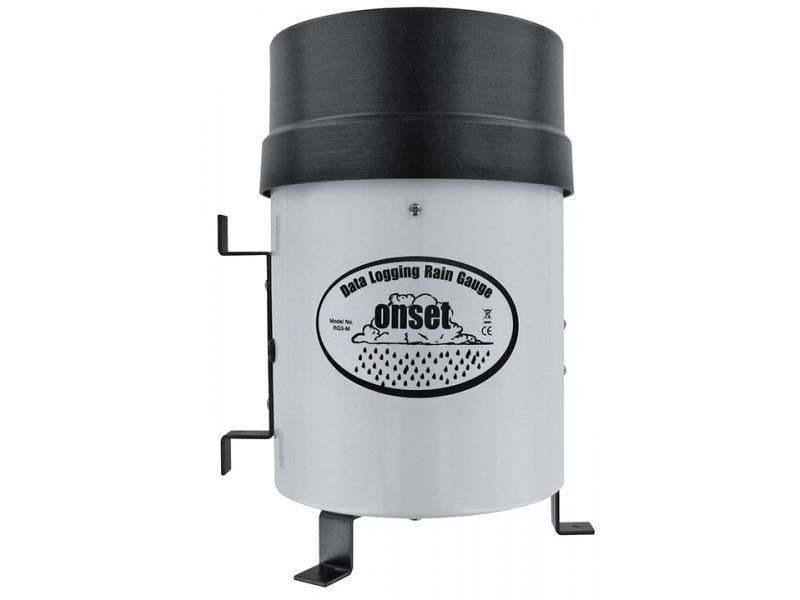

Record up to 160 in. of rainfall at rates up to 12.7 cm (5 in.) per hour. The Data Logging Rain Gauge system is battery powered and includes a HOBO Pendant Event data logger with a tipping-bucket rain gauge. Easily collect rainfall, time, and duration data, as well as temperature when used with an optional solar radiation shield (RS1 Solar Radiation Shield, or M-RSA). Base station or shuttle is required.
- High quality tipping-bucket rain gauge includes a HOBO Pendant Event data logger. Base station or shuttle is required.
- Time and date stamp is stored for each tip - provides detail needed to determine rainfall rates and duration.
- Reliable, field-proven rain gauge.
- Compatible with HOBOware and HOBOware Pro software for logger setup, graphing and analysis.
- Also records temperature when used with an optional solar radiation shield.
In what environment does this data logger operate?
This data logger operates in an outdoor environment.
What measurements does this data logger support?
The RG3 data logger supports the following measurement: Rainfall
|Maximum rainfall rate:||12.7 cm (5 in.) per hour|
|Calibration accuracy:||±1.0% (up to 1 in./hour for the RG3 or 20 mm/hour for the RG3-M)|
|Resolution:||0.01 in. (RG3) or 0.2 mm (RG3-M)|
|Calibration:||Requires annual calibration: can be field calibrated or returned to the factory for re-calibration|
|Operating temperature range:||0° to +50°C (+32° to +122°F)|
|Storage temperature range:||-20° to +70°C (-4° to +158°F)|
|Housing:||15.24cm (6-in.) aluminum bucket|

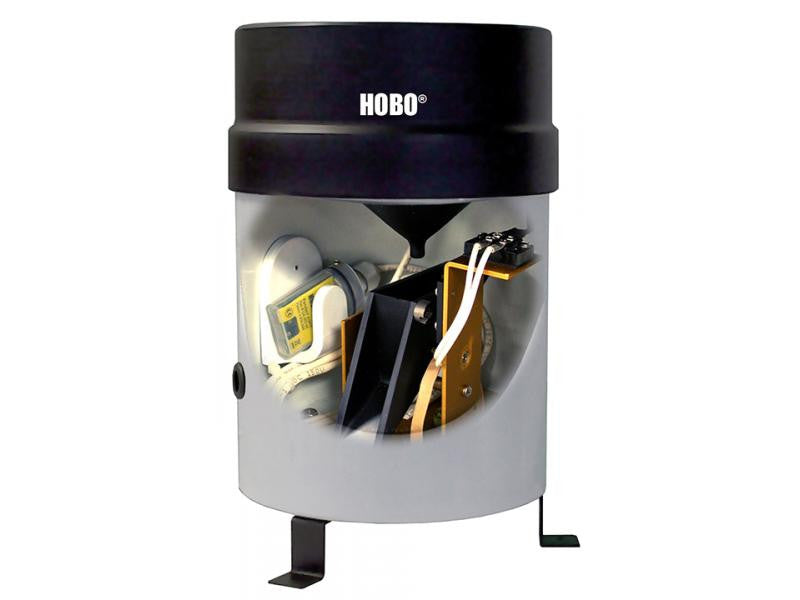

|Tipping bucket mechanism:||Stainless steel shaft with brass bearings|
|Dimensions:||25.72 cm height x 15.24 cm diameter (10.125 x 6 in.); 15.39 cm (6.06 in.) receiving orifice|
|Weight:||1.2 Kg (2.5 lbs)|
|Part numbers:||RG3 (0.01 in. per tip), RG3-M (0.2 mm per tip)|
|Time stamp resolution:||1.0 second|
|Time accuracy:||± 1 minute per month at 25°C (77°F), see Plot B on page 10.|
|Operating range:||-20° to 70°C (-4° to 158°F)|
|Environmental rating (for logger used outside of rain gauge):||Tested to NEMA 6 and IP67; suitable for deployment outdoors|
|NIST traceable certification:||Available for temperature only at additional charge; temperature range -20° to 70°C (-4° to 158°F)|
|Battery:||CR-2032 3V lithium battery; 1 year typical use|
|Memory:||64K bytes – 16K to 23K tips when recording rain only; 25K to 30K data points when recording rain and temperature|
|Materials:||Polypropylene case; stainless steel screws; Buna-N o-ring; PVC cable insulation|
|Measurement range:||-20° to 70°C (-4° to 158°F)|
|Accuracy:||± 0.47°C at 25°C (± 0.85°F at 77°F), A solar radiation shield is required for accurate temperature measurements in sunlight.|
|Resolution:||0.10°C at 25°C (0.18°F at 77°F)|
|Drift:||Less than 0.1°C/year (0.2°F/year)|
|Response time:||Available for temperature only at additional charge; temperature range -20° to 70°C (-4° to 158°F)|
|The CE Marking identifies this product as complying with the relevant directives in the European Union (EU).|
Graphing & Analysis
- BHW-PRO HOBOware Pro CD or USB Drive (USB Cable Included) Software
- BHW-PRO-DLD HOBOware Pro - Mac/Win (Download Only) Software
Data Offload - Base Stations - Shuttles - Couplers
- BASE-U-1 Optic USB Base Station for Pendant
- BASE-U-4 Optic USB Base Station
- U-DTW-1 HOBO Waterproof Shuttle
- HRB-TEMP-1 Replacement batteries (Pack of 5)
- DESICCANT5 Desiccant Replacement Pack for UA-003 Replacement
- CASE-PELICAN-1510 Pelican Case
- COUPLER-UA Replacement Pendant Coupler for the BASE-U-1 Replacement
- COUPLER2-A A Replacement Coupler for BASE-U-4 Replacement
