Overview

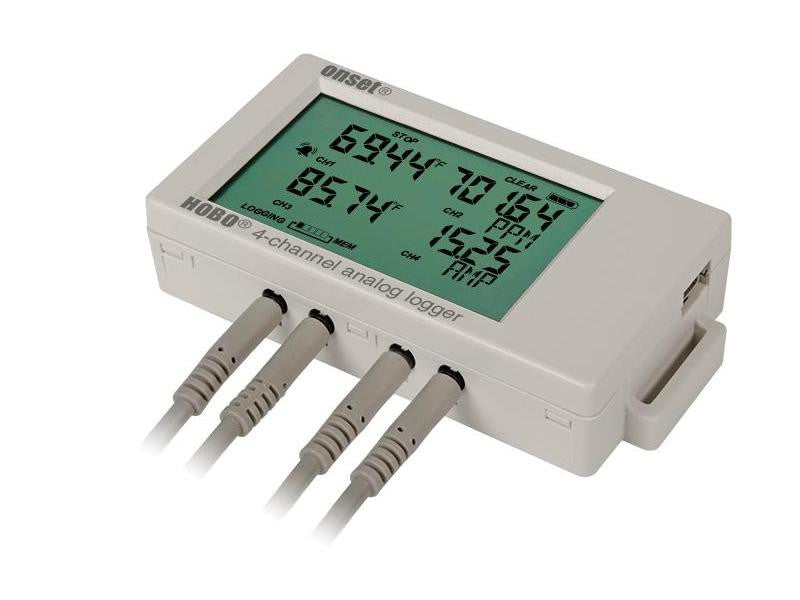

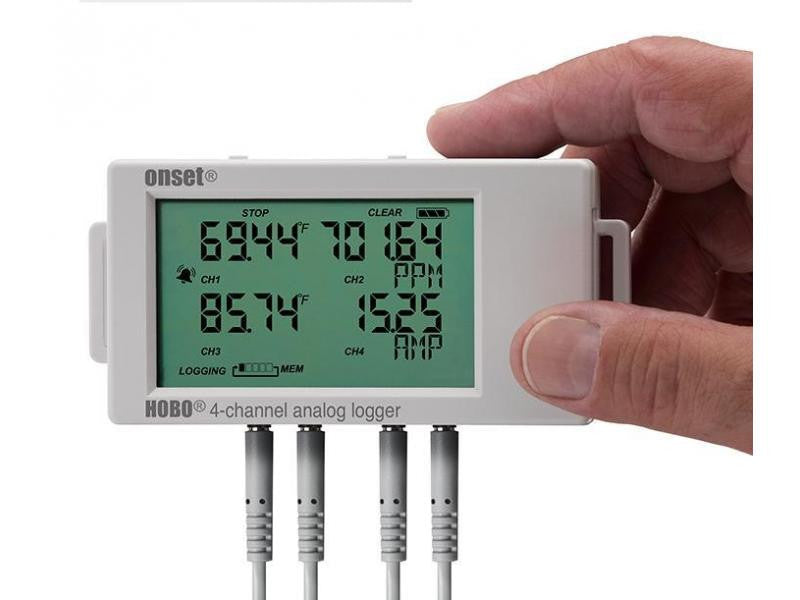

The HOBO UX120-006M Analog Data Logger is a high-performance, LCD display data logger for building performance monitoring applications.
As Onsets highest-accuracy data logger, it provides twice the accuracy of previous models, a deployment-friendly LCD, and flexible support up to four external sensors for measuring temperature, current, CO2, voltage, and more.
The data logger is ideal for energy audits, building commissioning studies, equipment scheduling, and more.
Highlighted Features
- Twice the accuracy over previous models with 16-bit resolution
- Flexible support for a wide range of external sensors
- LCD confirms logger operation and displays near real-time measurement data
- Provides minimum, maximum, average and standard deviation logging options
- On-screen alarms notify you when a sensor reading exceeds set thresholds
- Stores 1.9 million measurements for longer deployments between offloads
- Compatible with HOBOware and HOBOware Pro software for logger setup, graphing and analysis
In what environment does this data logger operate?
This data logger operates in an indoor environment.
What measurements does this data logger support?
The UX120-006M data logger supports the following measurements: 4-20mA, AC Current, AC Voltage, Air Velocity, Carbon Dioxide, Compressed Air Flow, DC Current, DC Voltage, Differential Pressure, Gauge Pressure, Kilowatts (kW), Temperature and Volatile Organic Comp.
Logger w/Cable
Measurement Range:
4-20mA (w/CABLE-4-20MA) 0 to 20.1 mA
0 to 2.5 V (w/CABLE-2.5-STEREO)
0 to 5 V (w/CABLE-ADAP5)
0 to 10 V (w/ CABLE-ADAP10)
0 to 24 V (w/ CABLE-ADAP24)
Accuracy:
4-20mA ±0.001 mA ±0.2% of reading (w/CABLE-4-20MA)
±0.1 mV ±0.1% of reading (w/CABLE-2.5-STEREO)
±0.2 mV ±0.3% of reading (w/CABLE-ADAP5)
±0.4 mV ±0.3% of reading (w/ CABLE-ADAP10)
±1.0 mV ±0.3% of reading(w/ CABLE-ADAP24)
Resolution:
0.3 µA 4-20mA (w/CABLE-4-20MA)
40 µV (w/CABLE-2.5-STEREO)
80 µV (w/CABLE-ADAP5)
160 µV (w/ CABLE-ADAP10)
384 µV (w/ CABLE-ADAP24)
Logger
Operating range logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing);
Launch/readout: 0° to 50°C (32° to 122°F) per USB specification
Logging rate: 1 second to 18 hours, 12 minutes, 15 seconds
Logging modes: Normal, burst, or statistics
Memory modes: Wrap when full or stop when full
Start modes: Immediate, push button, date & time, or next interval
Stop modes: When memory full, push button, or date & time
Restart mode: Push button
Time accuracy: ±1 minute per month at 25°C (77°F), see Plot A
Battery life: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater
Battery type: Two AAA 1.5 V alkaline batteries, user replaceable
Memory: 4 MB (1.9 million measurements, maximum)
Download type: USB 2.0 interface
Full memory download time: approximately 1.5 minutes
LCD: LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size: 10.8 x 5.41 x 2.54 cm (4.25 x 2.13 x 1 in.)
Weight: 107.5 g (3.79 oz)
Environmental rating: IP50
- The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
Graphing & Analysis
- BHW-PRO HOBOware Pro CD or USB Drive (USB Cable Included) Software
- BHW-PRO-DLD HOBOware Pro - Mac/Win (Download Only) Software
4-20 mA
- CABLE-4-20mA 4 to 20 mA Input Cable
- CTV-A 2-20 Amp split-core AC current Sensor
- CTV-B 5-50 Amp split-core AC current Sensor
- CTV-C 10-100 Amp split-core AC current Sensor
- CTV-D 20-200 Amp split-core AC current Sensor
- CTV-E 60 - 600 Amp split-core AC current Sensor
- T-CON-ACT-150 ConLab 0-150 Volt AC Transmitter Sensor
- T-CON-ACT-300 ConLab 0-300 Volt AC Transmitter Sensor
- T-DCI-F900-L-O Air Velocity (.15 to 5 m/s) (30 to 985 fpm) Sensor
- T-DCI-F900-L-P Air Velocity (0.15 to 10 m/s) (30 to 1969 fpm) Sensor
- T-DCI-F900-S-O Air Velocity (0.15 to 5 m/s) (30 to 985 fpm) Sensor
- T-DCI-F900-S-P Air Velocity Sensor (0.15 to 10 m/s) (30 to 1969 fpm) Sensor
- TEL-7001 Telaire 7001 CO2 Sensor
- T-CDI-5200-10S Compressed Air Flow Meter - 16-200 SCFM Sensor
- T-CDI-5400-20S Compressed Air Flow Meter - 40-600 SCFM Sensor
- T-VER-971BP-200 Split-Core Bi-Polar DC Transducer Sensor
- CABLE-2.5-STEREO 0 to 2.5 VoltsDC Voltage Input Sensor
- CABLE-ADAP10 0 to 10 VoltsDC Voltage Input Sensor
- CABLE-ADAP24 0 to 24 VoltsDC Voltage Input Sensor
- CABLE-ADAP5 0 to 5 VoltsDC Voltage Input Sensor
- T-VER-PXU-L Differential Air Pressure Transducer Sensor
- T-VER-PXU-X Differential Air Pressure Transducer Sensor
- T-ASH-G2-100 Ashcroft (100-psig) Gauge Pressure Sensor
- T-ASH-G2-200 Ashcroft (200-psig) Gauge Pressure Sensor
- T-ASH-G2-500 Ashcroft (500-psig) Gauge Pressure Sensor
- T-VER-8044-100 Veris 480 V, 100 Amp Kilowatt Transducer Sensor
- TMC1-HD Air/Water/Soil Temperature (1' cable) Sensor
- TMC20-HD Air/Water/Soil Temperature (20' cable) Sensor
- TMC50-HD Air/Water/Soil Temperature (50' cable) Sensor
- TMC6-HC Stainless Steel Temperature Probe (6' cable) Sensor
- TMC6-HD Air/Water/Soil Temperature (6' cable) Sensor
- TMC6-HET emperature (6') Sensor
- T-ION-TVOC Volatile Organic Compound (VOC) Sensor
Communication Cables
- CABLE-USBMB USB Cable
Carrying Case
- CASE-PELICAN-1510 Pelican Case
- COMPLIANCE CERT Compliance Certification
- NIST Setup & CertificationsNIST-RH Initial Purchase RH NIST Calibration Service Certification
- NIST-SETUP Setup Charge for NIST Traceable Certification
- NIST-TEMP-POINT NIST Temperature point Certification
