Ultrasonic Wind Speed and Direction Smart Sensor

Sensors

Ultrasonic Wind Speed and Direction Smart Sensor

  • Vendor:Onset

Availability: In Stock
$1,339.00
Qty Price
Buy 1 $1,339.00 ea
Buy 10 $1,238.58 ea

Overview

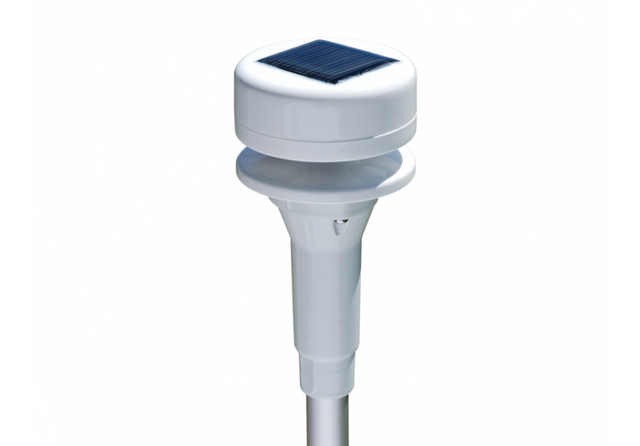

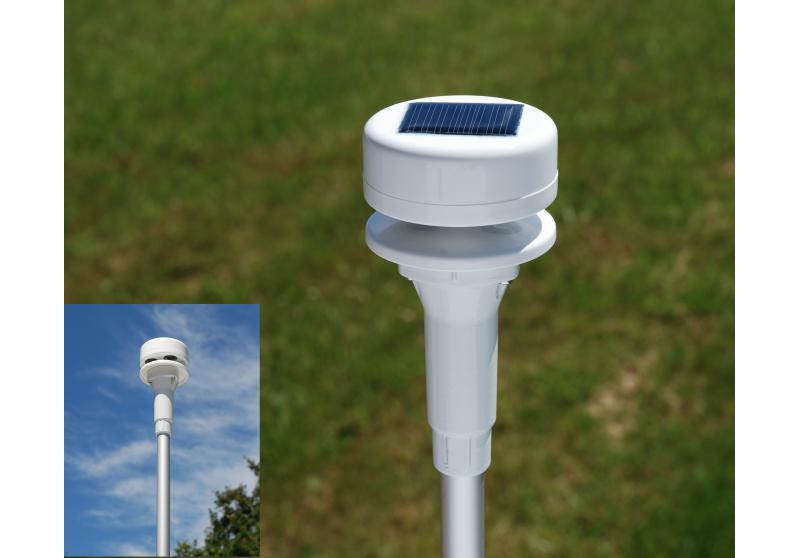

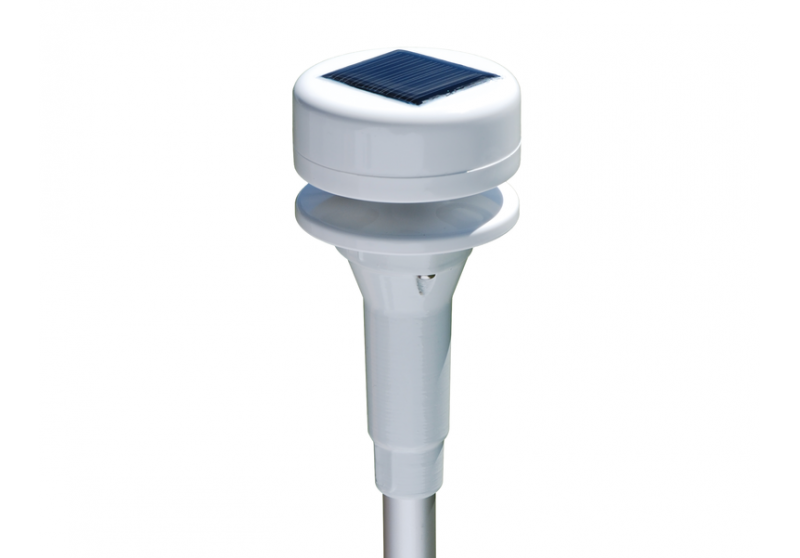

The Ultrasonic Wind Speed and Direction Smart Sensor is compact and rugged with no moving parts. Because this sensor is ultrasonic it is able to measure very low wind speeds, down to 0.4 m/s (compared to 1.0 m/s for our mechanical sensors). As with all Onset smart sensors, this sensor is plug-and-play with HOBO stations (RX3000, USB Micro Station and the U30-NRC). Because it is automatically recognized by HOBO stations, there is no need for programming, resulting in fast and easy deployment. The sensor is powered by its own built-in solar panel.



Highlighted Features

  • Compact and rugged with no moving parts
  • Plug-and-play with HOBO stations
  • No starting threshold – suitable for low wind speeds
  • No wind direction dead band – accurate wind data in all directions
  • Powered by its own built-in solar panel
  • Affordably priced

In what environment does this sensor operate?

This sensor operates in an outdoor environment.

What measurements does this sensor support?

The S-WCG-M003 sensor supports the following measurement: Wind

  Wind Speed/Gust Wind Direction
Measurement Range 0 to 41.16 m/s (0 to 92.07 mph) 0 to 359 degrees
Accuracy ±0.8 m/s (1.79 mph) or ±4% of reading, whichever is greater 0.2 to 3 m/s (0.44–6.7 mph):
±4 degrees
>3 m/s (6.7 mph): ±2 degrees
Resolution 0.4 m/s (0.89 mph) 1 degrees (0 to 359 degrees)
Measurement Definition Wind speed readings are taken every three seconds for the duration of the logging interval
Wind speed: Average speed for the entire logging interval
Gust speed: The highest three-second wind recorded during the logging interval
See Measurement Operation.
Unit vector averaging used; vector components for each wind measurement are calculated every three seconds for duration of logging interval (see Measurement Operation)
Operating Temperature Range Without Icing -15°C to 55°C (5°F to 131°F)
Environmental Rating Weatherproof
Housing Polyacetal
Dimensions Sensor length: 380 mm (14.96 inches)
Sensor head diameter: 60 mm (2.36 inches)
Sensor rod diameter: 16 mm (0.63 inches)
Weight 200 g (7 oz)
Power Supply Photovoltaic panel, LIFEP04 3.2 V -600 mAh battery
Bits per Sample 8 for each channel, 24 total
Number of Data Channels* 3
Measurement Averaging Option Automatic averaging (see Measurement Operation)
Cable Length Available 3 m (9.8 ft)
Length of Smart Sensor Network Cable* 0.5 m (1.6 ft)
CE

The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).

Web-based Monitoring Systems - via remote communication
  • RX3000 - RX3000 Remote Monitoring Station Data Logger

USB Data Loggers - requires external sensor(s)

  • H21-USB USB Micro Station Data Logger
  • H22-001   H22 Energy Data Logger
  • U30-NRC U30 USB Weather Station Data Logger
