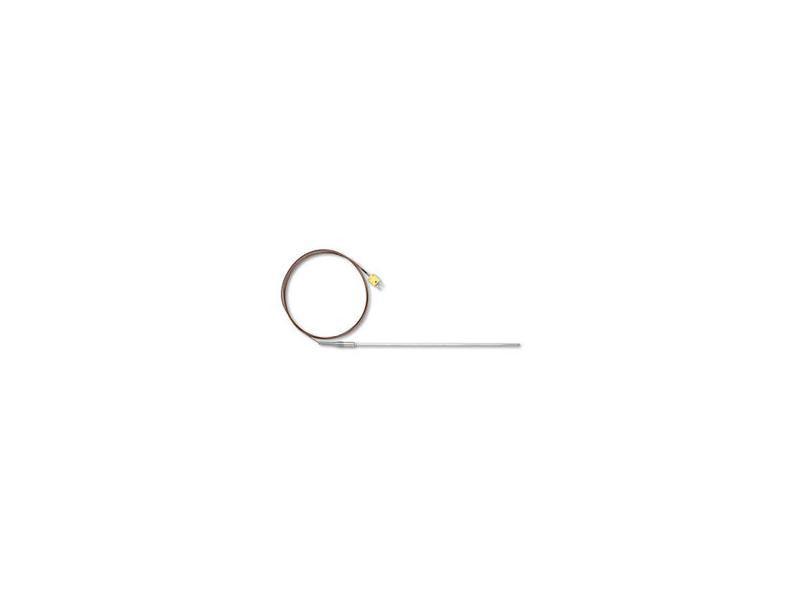

Type K 12" Probe Thermocouple Sensor

Important Info

Overview

The TCP6-K12 Type K thermocouple probe can measure up to 900°C (1650°F) when connect to the UX100 thermocouple logger. The TCP6-K12 stainless-steel probe is 30cm (12") in length, 0.5cm (3/16"?) in diameter and is mounted on a 2.5cm (1") handle with spring-type strain relief. The 1.8m (6 foot) 19-AWG cable meets ANSI specifications, complete with isolated thermocouple color-coded for type K (yellow) thermocouples.

Highlighted Features

• High-temperature stainless-steel probe
• 19-AWG cable
• Response range of 0°C to 900°C (32°F to 1650°F)

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The TCP6-K12 sensor supports the following measurement: Temperature

Specifications

Range:
0 to 293°C (32° to 559°F)
293°C  to 900°C (559° to 1650°F)
Initial accuracy: +/- 2.2°C (+/- 4°F) +/-0.75%*** ±data logger accuracy
High-temperature stainless steel probe: Type K
Dimensions: 12" 304 stainless-steel probe; 3/16" diameter with isolated thermocouple
1" Handle with spring-type strain relief
6' 19-AWG cable

***Probe is rated up to 900°C (1650°F) continuous, and 1235°C (2282°F) for one hour exposures
