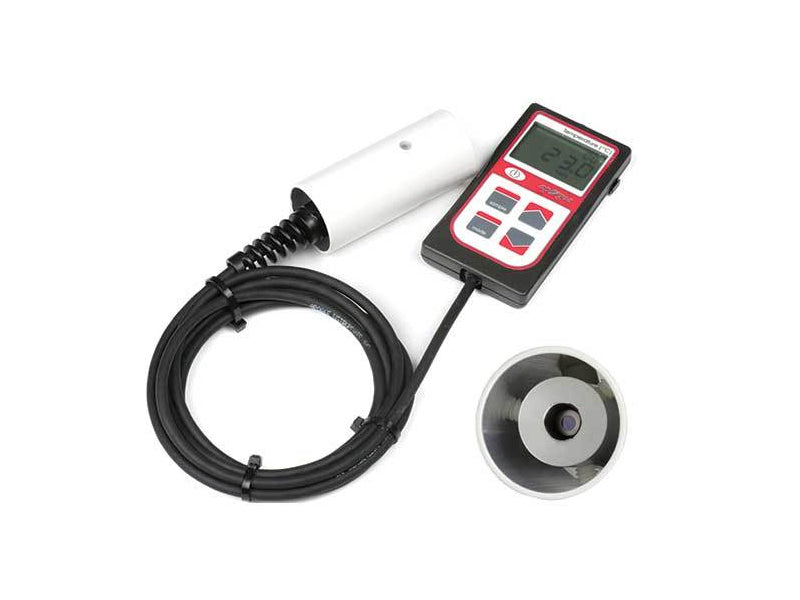

{"id":2260660977723,"title":"MQ-500: Full-Spectrum Quantum Meter","handle":"mq-500-full-spectrum-quantum-meter","description":"\u003ch5\u003eImportant Info\u003c\/h5\u003e\n\u003cp\u003eThe MQ-500 has a hand-held meter, attached via cable, that displays and stores measurements. The sensor incorporates a blue-enhanced silicon photodiode and custom optical filters with a rugged, self-cleaning sensor housing design, anodized aluminum body with acrylic diffuser. Typical applications include PPFD measurement over plant canopies in outdoor environments, greenhouses, and growth chambers, and reflected or under-canopy (transmitted) PPFD measurements in the same environments. Quantum sensors are also used to measure PAR\/PPFD in aquatic environments, including salt water aquariums where corals are grown.\u003cbr\u003e\u003cbr\u003eThe meter has a sample and log mode, and will record an integrated daily total in mol m-2 d-1. Sample mode will record up to 99 manual measurements. Log mode will power the meter on\/off to make a measurement every 30 seconds. Every 30 minutes the meter will average the sixty 30 second measurements and record the averaged value to memory. The meter can store up to 99 averages, once full it will start to overwrite the oldest measurement with new ones. An integrated daily total will be recorded from the 48 averaged measurements (making a 24 hr period). Sample and log measurements can be reviewed on the LCD display or by downloading the data to a computer, however, the integrated daily total can only be viewed by downloading the data to a computer. Downloading data to a computer requires the \u003ca href=\"https:\/\/shoponset.hoskin.ca\/collections\/apogee-instruments-1\/products\/ac-100-communication-cable?variant=21089913962555\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eAC-100 communication cable\u003c\/a\u003e (a standard USB cable will not work) and \u003ca href=\"https:\/\/www.apogeeinstruments.com\/downloads\/\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eApogeeAMS software.\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eFor instructions on how to use the meter for underwater measurements, see this page for the \u003c\/span\u003e\u003ca href=\"https:\/\/www.apogeeinstruments.com\/underwater-par-measurements\/\"\u003eimmersion effect correction factor\u003c\/a\u003e\u003cspan\u003e.\u003c\/span\u003e\u003c\/p\u003e\n\u003ch3\u003eHow is the MQ-500 different from previous Apogee quantum sensors?\u003c\/h3\u003e\n\u003cp\u003eThe MQ-500 is a full spectrum quantum sensor with a spectral range of 389 to 692 nm ± 5 nm, which can be seen in the graph below. This improved spectral respose increases the acuracy of LED measurements.\u003cbr\u003e\u003cbr\u003eWhere is the MQ-500 used?\u003c\/p\u003e\n\u003cp\u003e\u003cbr\u003eThe MQ-500 is used to measure incoming PPFD measurements in outdoor environments, greenhouses, growth chambers, and aquariums.\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/cdn11.bigcommerce.com\/s-0oei9zu\/content\/images\/sq_xxx_spectral_response.jpg\" alt=\"SQ-500 \u0026amp; SQ-100 Spectral Response\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003ch5\u003eVideos\u003c\/h5\u003e\n\u003cdiv class=\"product-video-container\"\u003e\u003ciframe src=\"https:\/\/www.youtube.com\/embed\/-lvw3rqOF5w?rel=0\u0026amp;showinfo=0\u0026amp;autohide=1\" frameborder=\"0\" allowfullscreen=\"\"\u003e\u003c\/iframe\u003e\u003c\/div\u003e\n\u003cdiv class=\"product-video-container\"\u003e\u003ciframe src=\"https:\/\/www.youtube.com\/embed\/TszB2A3bdYc?rel=0\u0026amp;showinfo=0\u0026amp;autohide=1\" frameborder=\"0\" allowfullscreen=\"\"\u003e\u003c\/iframe\u003e\u003c\/div\u003e\n\u003cdiv class=\"product-video-container\"\u003e\u003ciframe src=\"https:\/\/www.youtube.com\/embed\/Pc_tqLYhITA?rel=0\u0026amp;showinfo=0\u0026amp;autohide=1\" frameborder=\"0\" allowfullscreen=\"\"\u003e\u003c\/iframe\u003e\u003c\/div\u003e\n\u003cdiv class=\"product-video-container\"\u003e\u003ciframe src=\"https:\/\/www.youtube.com\/embed\/-vPWP0HuVsE?rel=0\u0026amp;showinfo=0\u0026amp;autohide=1\" frameborder=\"0\" allowfullscreen=\"\"\u003e\u003c\/iframe\u003e\u003c\/div\u003e\n\u003ch5\u003eSpecifications\u003c\/h5\u003e\n\u003cp\u003e\u003cstrong\u003eCalibration Uncertainty:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003e± 5 %\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eMeasurement Range:\u003c\/strong\u003e 0 to 4000 µmol mˉ² sˉ¹\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eMeasurement Repeatability:\u003c\/strong\u003e Less than 0.5 %\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eLong-term Drift (Non-stability):\u003c\/strong\u003e Less than 2 % per year\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eNon-linearity:\u003c\/strong\u003e Less than 1 % (up to 4000 µmol mˉ² sˉ¹)\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eResponse Time:\u003c\/strong\u003e Less than 1 ms\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eField of View:\u003c\/strong\u003e 180 ˚\u003cbr\u003e\u003cstrong\u003eSpectral Range:\u003c\/strong\u003e 389 to 692 nm ± 5 nm (wavelengths where response is greater than 50 % of maximum)\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eSpectral Selectivity:\u003c\/strong\u003e Less than 10 % from 412 to 682 nm ± 5 nm\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eDirectional (Cosine) Response:\u003c\/strong\u003e ± 5 % at 75 ˚ zenith angle\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eAzimuth Error:\u003c\/strong\u003e Less than 0.5 %\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eTilt Error:\u003c\/strong\u003e Less than 0.5 %\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eTemperature Response:\u003c\/strong\u003e -0.11 ± 0.03 % Cˉ¹\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eUncertainty in Daily Total:\u003c\/strong\u003e Less than 5 %\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eDetector:\u003c\/strong\u003e Blue-enhance silicon photodiode\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eHousing:\u003c\/strong\u003e Anodized aluminum body with acrylic diffuser\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eIP Rating:\u003c\/strong\u003e IP68\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eOperating Environment:\u003c\/strong\u003e 0 to 50 C, less than 90 % non-condensing relative humidity up to 30 C, less than 70 % non-condensing relative humidity from 30 to 50 C, separate sensors can be submerged in water up to depth of 30 m\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eMeter Dimensions:\u003c\/strong\u003e 126 mm length, 70 mm width, 24 mm height\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eSensor Dimensions:\u003c\/strong\u003e 24 mm diameter, 37 mm height\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eMass:\u003c\/strong\u003e 100 g (with 5 m of lead wire)\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eCable:\u003c\/strong\u003e 2 m of shielded, twisted-pair wire with santoprene rubber jacket (high water resistance, high UV stability, flexibility in cold conditions), additional cable available\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eWarranty:\u003c\/strong\u003e 4 years against defects in materials and workmanship\u003c\/p\u003e\n\u003ch5\u003eCompatible Items\u003c\/h5\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/shoponset.hoskin.ca\/collections\/apogee-instruments-1\/products\/ac-100-communication-cable?variant=21089913962555\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eAC-100: Communication Cable\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/shoponset.hoskin.ca\/collections\/apogee-instruments-1\/products\/al-120-solar-mounting-bracket-with-leveling-plate\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eAL-120 Solar Mounting Bracket with Leveling Plate\u003c\/a\u003e\u003cbr\u003e\u003ca href=\"https:\/\/shoponset.hoskin.ca\/collections\/apogee-instruments-1\/products\/al-100-solar-sensor-leveling-plate?variant=21086662557755\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eAL-100: Solar Sensor Leveling Plate\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/shoponset.hoskin.ca\/products\/am-310-sensor-wand?variant=21086714986555\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eAM-310: Sensor Wand\u003c\/a\u003e\u003c\/p\u003e","published_at":"2019-06-05T12:11:15","created_at":"2019-06-05T12:33:27","vendor":"Apogee","type":"Apogee Instruments","tags":["Apogee Meters"],"price":76200,"price_min":76200,"price_max":76200,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":true,"all_variant_ids":[21086830329915,37316180508831],"variants":[{"id":21086830329915,"product_id":2260660977723,"product_handle":"mq-500-full-spectrum-quantum-meter","title":"Default title","option1":"1+","option2":null,"option3":null,"sku":"E804-MQ-500","requires_shipping":true,"taxable":true,"featured_image":null,"image_id":null,"available":true,"name":"MQ-500: Full-Spectrum Quantum Meter - 1+","options":["1+"],"price":76200,"weight":0,"compare_at_price":null,"inventory_quantity":-68,"inventory_management":null,"inventory_policy":"deny","inventory_in_cart":0,"inventory_remaining":-68,"incoming":false,"next_incoming_date":null,"taxable":true,"barcode":"","qb_lookup":{"levels": {"1": {"id":21086830329915,"price":76200},"10": {"id":37316180508831,"price":72390}},"qb_price_varies":true,"grid":"\u003ctable class='shappify_qb_grid'\u003e \u003cthead\u003e \u003ctr\u003e \u003cth\u003eQty\u003c\/th\u003e \u003cth\u003ePrice\u003c\/th\u003e \u003c\/tr\u003e \u003c\/thead\u003e \u003ctbody\u003e \u003ctr\u003e \u003ctd\u003eBuy 1\u003c\/td\u003e \u003ctd\u003e$762.00 ea\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eBuy 10\u003c\/td\u003e \u003ctd\u003e$723.90 ea\u003c\/td\u003e \u003c\/tr\u003e \u003c\/tbody\u003e \u003c\/table\u003e\u003cstyle\u003etable.shappify_qb_grid{ width:100%;} table.shappify_qb_grid offers thead, table.shappify_qb_grid thead tr, table.shappify_qb_grid thead th, table.shappify_qb_grid thead td{background:#D6D6D6;color:#000000;font-weight:bold;} table.shappify_qb_grid tbody tr:nth-child(odd) {background-color:#FFFFFF;} table.shappify_qb_grid tbody tr:nth-child(even) {background-color:#EFEFEF;} table.shappify_qb_grid tbody {color:#000000;} table.shappify_qb_grid, table.shappify_qb_grid th, table.shappify_qb_grid td { text-align:left;padding:5px;border: 1px solid #CCCCCC;border-collapse: collapse;} table.shappify_qb_grid {margin: 0px;}\u003c\/style\u003e"}}],"available":true,"images":["\/\/cdn.shopify.com\/s\/files\/1\/1798\/4991\/products\/MQ-500.jpg?v=1586288073","\/\/cdn.shopify.com\/s\/files\/1\/1798\/4991\/products\/mq-yellow-usb.jpg?v=1586288079","\/\/cdn.shopify.com\/s\/files\/1\/1798\/4991\/products\/mq-500-top.jpg?v=1586288107","\/\/cdn.shopify.com\/s\/files\/1\/1798\/4991\/products\/full-spectrum-analog-front2.jpg?v=1586288111"],"featured_image":"\/\/cdn.shopify.com\/s\/files\/1\/1798\/4991\/products\/MQ-500.jpg?v=1586288073","options":["Title"],"url":"\/products\/mq-500-full-spectrum-quantum-meter","hasQB":true}
