Leaf Wetness Smart Sensor

Sensors

Leaf Wetness Smart Sensor

  • Vendor:Onset

Availability: Available Item
$276.00
Qty Price
Buy 1 $276.00 ea
Buy 10 $262.20 ea

Overview

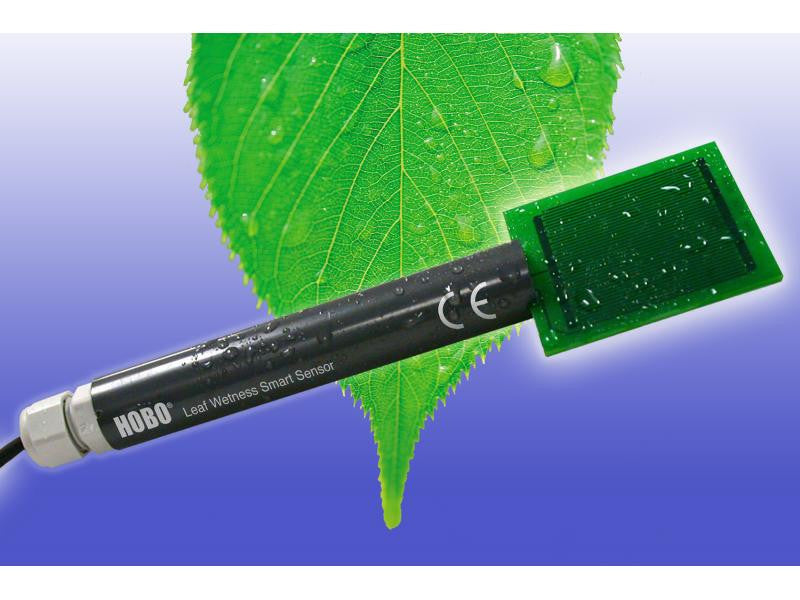

The Leaf Wetness Smart Sensor provides accurate leaf wetness data in a number of growing and research applications. The sensor is ready to use and does not require any painting or coating. It uses a capacitive grid that is less sensitive to surface residues than resistive grid-based sensors, and comes preconditioned for consistent measurements between sensors and for long-term stability. Along with a 3-meter cable, a mounting bracket is included so the sensor can be easily positioned to mimic the wet-dry characteristics of the plants being studied.

Highlighted Features

  • Does not require any painting or coating
  • Preconditioned for consistent measurements
  • 3-meter cable and mounting bracket included

In what environment does this sensor operate?

This sensor operates in an outdoor environment.

What measurements does this sensor support?

The S-LWA-M003 sensor supports the following measurement: Leaf Wetness

Measurement range: 0 (dry) to 100% (wet)
Operating range: -40°C to 70°C, (-40°F to 158°F)
Repeatablility: ± 5%
Resolution: 0.59%
Stability: < ± 5% per year
Interchangeability between sensors (over the range 10-90%): ± 10%
Measurement averaging option: No
Housing: No coating required
Sensor type: Capacitive Grid

Dimensions
Sensor plate: 4.7 cm x 5.1 cm (1.8"? x 2.0"?)
Tube: 12.2 cm length x 1.8 cm diameter (4.8"? x 0.7"?)

Cable length: 3m (9.8)
Length of Smart Sensor Network Cable: 3m
Approximate weight: 127 g (4.5 oz) for sensor, and 290 g (10.2 oz) with mounting bracket
Mounting bracket: 20 cm long (8"?);Sensor can be positioned at any angle between 0 and 90 degrees (vertical)
Number of data channels: 1

For mounting on Onset tripods or masts 3.2 cm to 4.1 cm (1 1/4"? to 1 5/8"?), Cross Arms (Part # M-CAA or M-CAB), or flat surfaces. U-bolt and tie-wraps included.


 - The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
