InTemp Cryogenic Multiple Use Data Logger With ILAC/ISO17025 NIST Certificate of Calibration (CX703)

Data Loggers

InTemp Cryogenic Multiple Use Data Logger With ILAC/ISO17025 NIST Certificate of Calibration (CX703)

  • Vendor:Onset

Availability: Available Item
$550.00
Qty Price
Buy 1 $550.00 ea
Buy 10 $522.50 ea

Description:

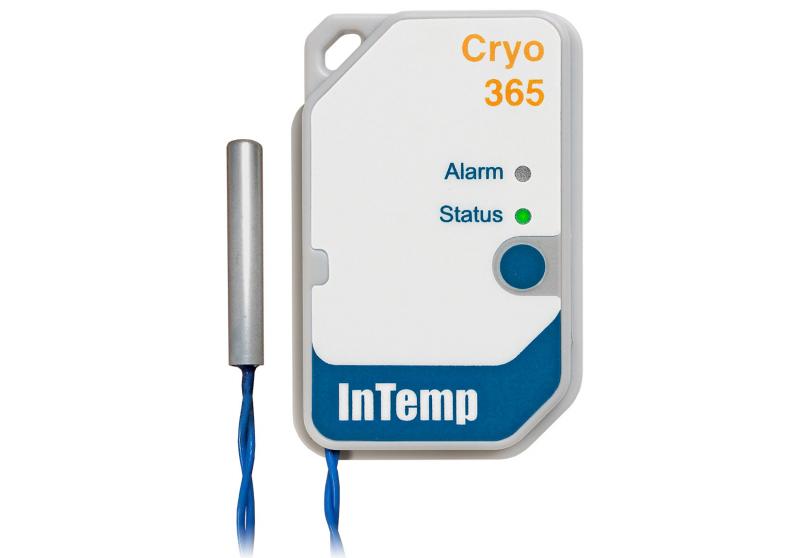

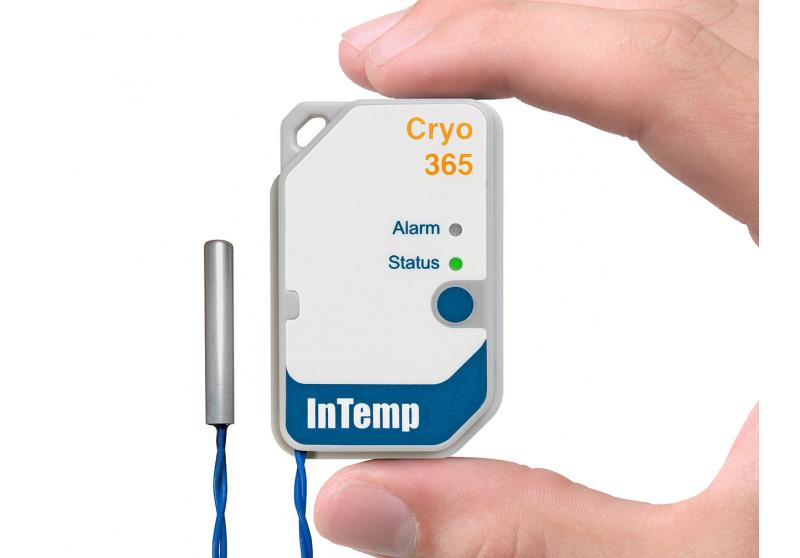

The InTemp CX703 Cryogenic data logger is a low-cost Bluetooth Low Energy (BLE)-enabled multiple-use logger that records temperature data for up to 365 days. The CX703’s built-in 1.5m probe measures temperatures as low as -200°C (-328°F) and includes a protective sheath to prevent accidental cutting of the cable.

Using the InTemp® app on your mobile device, you can easily configure the CX703 with one of multiple preset configurations, or set up a custom configuration. The logger has a built-in alarm to alert you to excursions. And logger reports can be quickly downloaded to your phone or tablet and uploaded to an InTempConnect® account, where you can analyze and export data as needed.

With the optional CX Gateway, you can get real-time notification of temperature excursions and automatically download data from loggers within range of the device. Learn more about the CX Gateway here.



Highlighted Features:

  • Single-Point ILAC/ISO17025 NIST Certificate of Calibration, valid for one year from date of purchase (CX703 ONLY. CX703-UN is not NIST Calibrated; calibration can be performed by the user)
  • IATA Battery compliant
  • Record up to 14,000 data points
  • Anti-cut sheath
  • Integrates with mobile and cloud platforms for a 21CFR Part 11 compliant solution
  • Compact and lightweight – ideal for shipping pharmaceuticals
  • No need to open containers to access data
  • Ensures secure data via encrypted technology

Compare CX400 Models

Temperature Probe
Sensor Range -200° to 50°C (-328° to 122°F); To ensure insulation integrity, avoid flexing the wire during exposure to temperatures below -100°C (-148°F)
Accuracy ±1.5°C from -95° to -40°C (±2.7°F from -139° to -40°F)
±1.0°C from -40° to -10°C (±1.8°F from -40° to 14°F)
±0.5°C from -10° to 50°C (±0.9°F from -14° to 122°F)
Resolution 0.013°C at 25°C (0.023°F at 77°F)
Drift <0.1°C (0.18°F) per year
Response Time 1 minute 30 seconds typical to 90% in open air moving 1 m/s, unmounted
NIST Calibration

CX702 and CX703: Single-point NIST calibration, probe only
CX703-UN: Calibration not included

Cable Length 1.5 m (4.92 ft)
Probe Dimensions Food-grade stainless steel probe with blunt tip, 31.75 mm (1.25 inches) long, 4.78 mm (0.188 inches) diameter
Logger
Logger Operating Range -30° to 50°C (-22° to 122°F)
Radio Power 1 mW (0 dBm)
Transmission Range Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
Type Multiple Use
Duration Up to 1 year
Shelf Life Up to 1 year
Logging Rate 1 second to 18 hours
Time Accuracy ±1 minute per month at 25°C (77°F)
Battery CR2450 3V lithium, not replaceable. Battery for CX602 and CX702 models lasts for duration specified when logger is used within the 1-year shelf life. Battery life for the CX603 and CX703 models is 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive downloads, and paging may impact battery life.
Memory 16,000 measurements
Full Memory Download
Time
Approximately 30 seconds; may take longer the farther the device is
from the logger
Dimensions 6.9 x 4.5 x 1.1 cm (2.71 x 1.76 x 0.42 inches)
Weight 25.5 g (0.90 oz)
Environmental Rating IP65
CE The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
