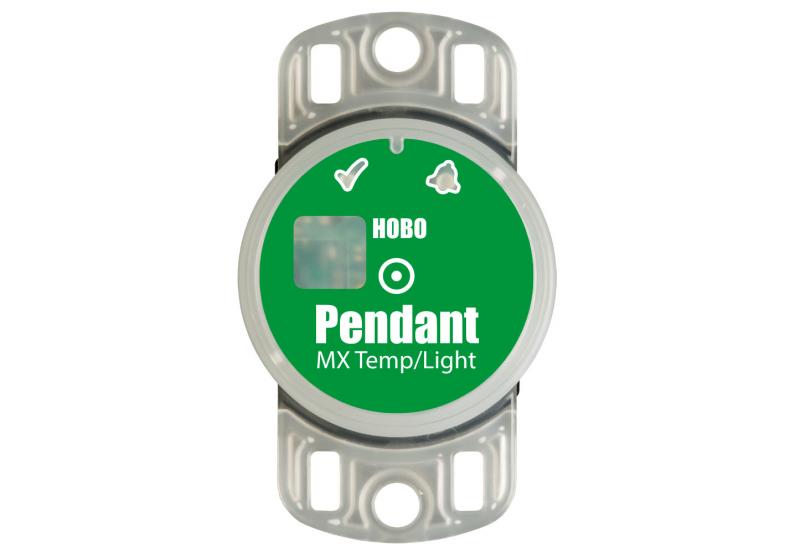

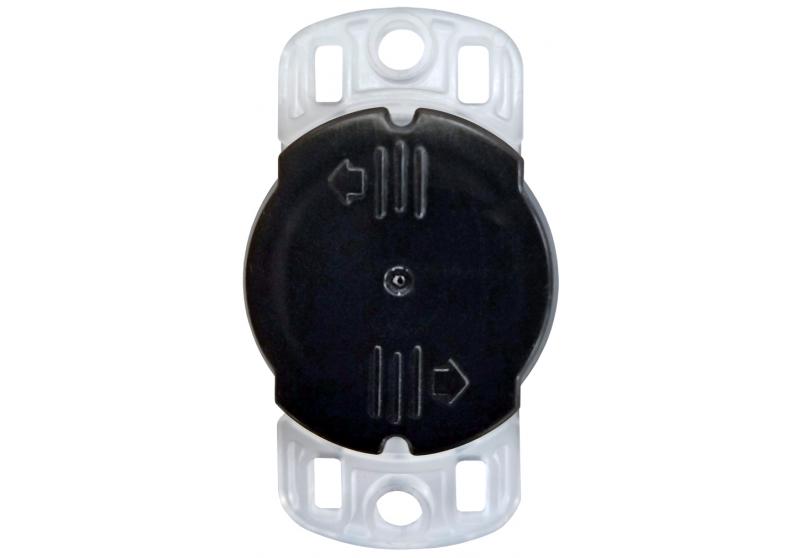

HOBO Pendant® MX Temperature/Light Data Logger

Data Loggers

HOBO Pendant® MX Temperature/Light Data Logger

  • Vendor:Onset

Availability: Available Item
$134.00
Qty Price
Buy 1 $134.00 ea
Buy 10 $127.30 ea

Overview

The HOBO MX2202 water temperature/light level logger leverages the power of Bluetooth Low Energy (BLE) to deliver accurate temperature and relative light-level measurements straight to your iOS or Android mobile device. Designed for durability, this compact waterproof logger is ideal for measuring temperature in streams, lakes, oceans, and soil environments. Data collection in the field has never been easier!

Highlighted Features

  • Convenient wireless setup and download via Bluetooth Low Energy (BLE)
  • Large memory stores 98,000 measurements
  • Waterproof to 30 meters (100 feet)
  • User-replaceable battery
  • Mounting tabs for fast, easy deployment
  • LED alarm notifies you when temperature exceeds set threshold
  • Works with Onset’s free HOBOmobile app
  • ±0.5°C (±0.9°F) accuracy
  • In what environment does this data logger operate?
  • This data logger operates in indoor, outdoor and underwater environments.

What measurements does this data logger support?

The MX2202 data logger supports the following measurements: Light Intensity, Temperature and Water Temp

Temperature Sensor (MX2201 and MX2202)
Range: -20° to 70°C (-4° to 158°F) in air -20° to 50°C (-4° to 122°F) in water
Accuracy: ±0.5°C from -20° to 70°C (-4° to 158°F)
Resolution: 0.04°C (0.072°F)
Drift <0.1°C (0.18°F) per year
Response Time: 17 minutes typical to 90% in air moving 1 m/s, unmounted 7 minutes typical to 90% in stirred water, unmounted
Light Sensor (MX2202)
Range: 0 to 167,731 lux (15,582 lum/ft2)
Accuracy: ±10% typical for direct sunlight (see Light Measurement on page 2 in the manual for more details)
Logger
Radio Power: 1 mW (0 dBm)
Transmission Range: Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard: Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0)
Logger Operating Range: -20° to 70°C (-4° to 158°F) in air
Logging Rate: 1 second to 18 hours
Buoyancy (Fresh Water) : 2g (0.07 oz) positive
Waterproof: To 30.5 m (100 ft)
Memory: 96,000 measurements
Battery: Battery
Battery Life: 1 year typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off disabled in software.
2 years typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off enabled in software.
Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.
To ensure proper battery installation, see Battery Information for detailed instructions on replacing the battery.
Time Accuracy: ± 1 minute per month at 25°C (77°F)
Full Memory Dowload: Approximately 45 seconds; may take longer the farther the device is from the logger
Wetted Materials: Polypropylene case, EPDM O-ring
Dimensions: 3.35 x 5.64 x 1.6 cm (1.32 x 2.22 x 0.63 inches)
Weight: 12.75 g (.45 oz)
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).

Solar Radiation Shields

  • M-RSA Solar Radiation Shield (assembled)
  • RS1 Solar Radiation Shield
