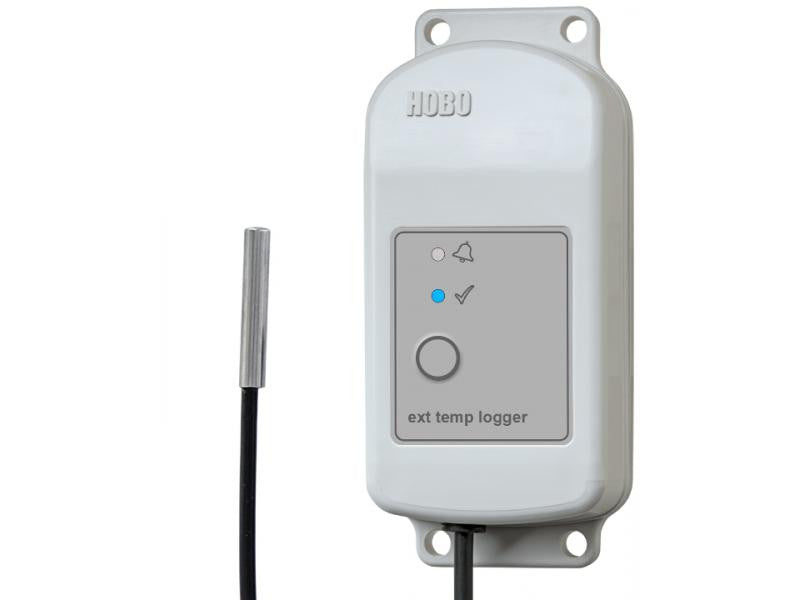

HOBO MX2304 External Temperature Sensor Data Logger

Data Loggers

HOBO MX2304 External Temperature Sensor Data Logger

  • Vendor:Hoskin Scientific

Availability: In Stock
$185.00
Qty Price
Buy 1 $185.00 ea
Buy 10 $171.13 ea

Overview

The HOBO MX2304 is a weatherproof data logger with one external temperature sensor. Leveraging Bluetooth Low Energy, the logger enables easy, fast set up and data download directly from your mobile device, and provides high-accuracy measurements in harsh outdoor environments.

Highlighted Features

  • Convenient wireless setup and download via Bluetooth Low Energy (100-foot range)
  • Retrieve data in hard-to-reach locations
  • Visual alarms alert you to out-of-range conditions
  • Compact, weatherproof housing with built-in mounting
  • View current data in real time with Onset¢‚¬„¢s free HOBOmobile app
  • Share downloaded data easily from your mobile device
  • Accuracy: +/- 0.2C‚°

In what environment does this data logger operate?

This data logger operates in an outdoor environment.

What measurements does this data logger support?

The MX2304 data logger supports the following measurement: Temperature

‚

Temperature Sensor
Range: MX2301 and MX2305 internal sensors: -40 to 70°C (-40 to 158°F)
MX2302 external temperature sensor: -40 to 70°C (-40 to 158°F)
MX2303 and MX2304 external sensors: -40 to 100°C (-40 to 212°F), with tip and cable immersion in fresh water up to 50°C (122°F) for one year
Accuracy: ±0.25°C from -40 to 0°C (±0.45 from -40 to 32°F)
±0.2°C from 0 to 70°C (±0.36 from 32 to 158°F)
±0.25°C from 70 to 100°C (±0.45 from 158 to 212°F), MX2303 and MX2304 only
Resolution: 0.04°C (0.072°F)
Drift: < 0.01°C (0.018°F) per year
RH Sensor (MX2301, MX2302 only)
Range: 0 to 100% RH, -40° to 70°C (-40° to 158°F); exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1%
Accuracy: ±2.5% from 10% to 90% (typical) to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% RH and above 90% RH ±5% typical
Resolution: 0.05%
Drift: < 1% per year typical
Response Time: Temperature (typical, to 90% of change) Without Solar Radiation Shield With RS1/M-RSA Solar Radiation Shield With RS3-B Solar Radiation Shield
MX2301 internal sensor 17 minutes in air moving 1 m/sec 24 minutes in air moving 1 m/sec N/A
MX2302 external sensor 2 minutes, 30 seconds in air moving 1 m/sec 6 minutes in air moving 1 m/sec 5 minutes in air moving 1 m/sec
MX2303/MX2304 external sensors 3 minutes in air moving 1 m/sec; 20 seconds in stirred water 7 minutes in air moving 1 m/sec 4 minutes in air moving 1 m/sec
MX2305 internal sensor 17 minutes in air moving 1 m/sec 24 minutes in air moving 1 m/sec N/A
Response Time: Temperature (typical, to 90% of change) Without Solar Radiation Shield With RS1/M-RSA Solar Radiation Shield With RS3-B Solar Radiation Shield
MX2301 internal sensor 1 minute in air moving 1 m/sec 1 minute in air moving 1 m/sec N/A
MX2302 external sensor 4 minutes in air moving 1 m/sec 4 minutes in air moving 1 m/sec 4 minutes in air moving 1 m/sec
Logger
Radio Power: 1mW (0 dBm)
Transmission Range : Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard: Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0)
Logger Operating Range : 40° to 70°C (-40° to 158°F)
Logging Rate: 1 second to 18 hours
Logging Modes: 1Fixed interval (normal, statistics) or burst
Memory Modes: Wrap when full or stop when full
Start Modes: Immediate, push button, date & time, or next interval
Stop Modes: When memory full, push button, date & time, or after a set logging period
Time Accuracy: ±1 minute per month 0° to 50°C (32° to 122°F)
Battery Type: 2/3 AA 3.6 Volt lithium, user replaceable
Battery Life: 2 years, typical with logging interval of 1 minute and Power Saving Mode disabled; 5 years, typical with logging interval of 1 minute and Power Saving
Mode enabled. Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and
paging may impact battery life.
Memory: 128 KB (84,650 measurements, maximum)
Full Memory Download Time: Approximately 60 seconds; may take longer the further the device is from the logger
Dimensions: Logger housing: 10.8 x 5.08 x 2.24 cm (4.25 x 2.0 x 0.88 in.) External temperature sensor diameter: 0.53 cm (0.21 in.)
External temperature/RH sensor diameter: 1.17 cm (0.46 in.)
External sensor cable length: 2 m (6.56 ft)
Solar radiation shield bracket: 10.8 x 8.3 cm (4.25 X 3.25 in.)
Weight: Logger: 75.5 g (2.66 oz) Solar radiation shield bracket: 20.4 g (0.72 oz)
Materials: Acetal, silicone gasket, stainless steel screws
Environmental Rating: NEMA 6 and IP67
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU). This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
