Davis® 0.2 mm Rain Gauge Smart Sensor


Davis® 0.2 mm Rain Gauge Smart Sensor

  • Vendor:Onset

Availability: Available Item
Qty Price
Buy 1 $443.00 ea
Buy 10 $420.85 ea

A complete system requires at least one HOBO RX3000 Remote Monitoring Station, a HOBOnet Wireless Manager (RXMOD-RXW-xxx), and a HOBOnet Wireless Sensor. HOBOnet Wireless Repeaters (RX-RPTR-xxx) can be added to extend the range.

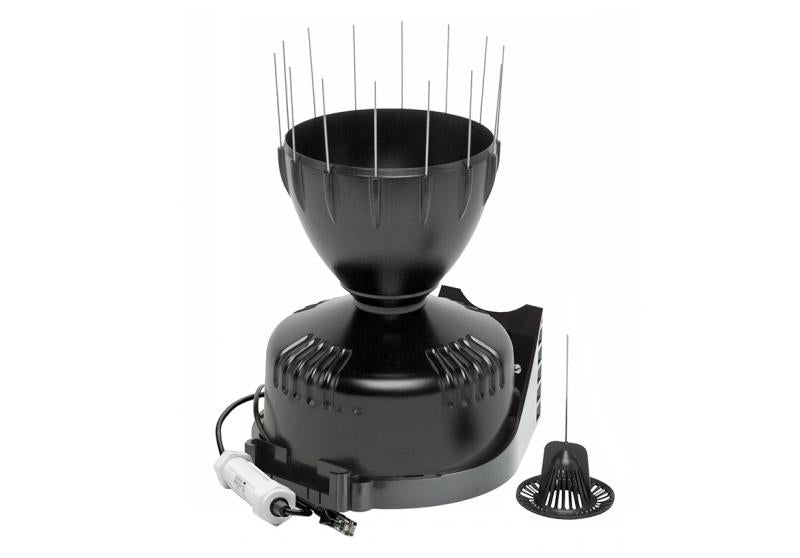

The Davis® Rain Gauge Smart Sensors features the new AeroCone® design, for better measurement accuracy in high-wind conditions. This gauge is made from UV-stabilized ABS plastic to provide a cost-effective sensor for rainfall measurement, and is plug-and-play compatible with all HOBO weather stations.

Also available in a wireless model for use with the HOBOnet Field Monitoring System.

Highlighted Features

  • Streamlined design reduces the amount of missed rain capture in windy conditions, resulting in more accurate rainfall data
  • Improved debris screen locks in place to ensure it remains in place during high winds
  • 16.5 cm (6.5”) collector opening meets World Meteorological Organization (WMO) guidelines

In what environment does this sensor operate?

This sensor operates in an outdoor environment.

What measurements does this sensor support?

The S-RGF-M002 sensor supports the following measurement: Rainfall

HOBOnet Field Monitoring System

The NEW HOBOnet Field Monitoring System from Onset provides a cost-effective and scalable solution for web-enabled monitoring of field conditions for applications such as crop management, research, and greenhouse operations.


Measurement Range 0 to 10.2 cm (0 to 4 in.) per hour, maximum 4,000 tips per logging interval


±4.0%, ±1 rainfall count between 0.2 and 50.0 mm (0.01 and 2.0 in.) per hour; ±5.0%, ±1 rainfall count between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour


0.01 in. (S-RGC-M002) or 0.2 mm (S-RGF-M002)


Requires annual calibration; can be field calibrated

Operating Temperature Range

0° to 50°C (32° to 122°F), survival -40° to 75°C (-40° to 167°F)

Environmental Rating



UV-stabilized ABS plastic

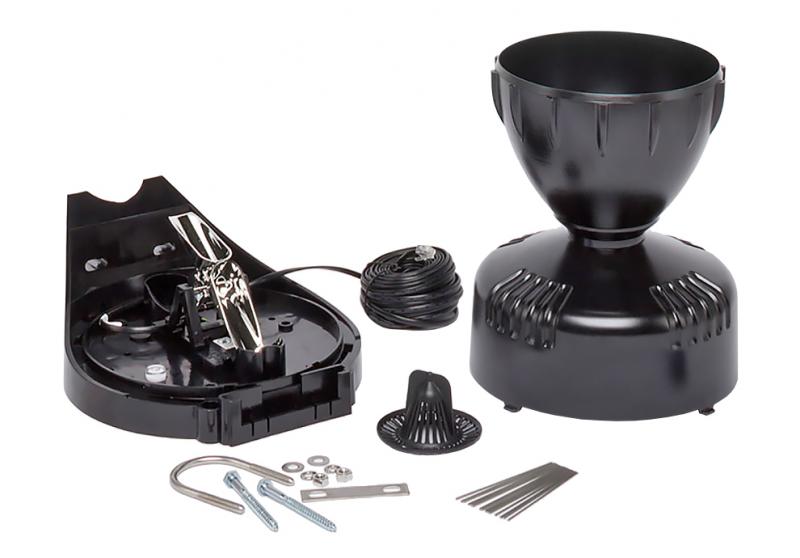

Tipping bucket with magnetic reed switch pivots on metal shaft


16.5 cm opening diameter (6.5 in.) x 24 cm (9.5 in.) high; 214 cm2 (33.2 in.2) collection area


1.2 kg (2.7 lbs)

Bits per Sample


Number of Data Channels*


Measurement Averaging


Cable Length Available

2 m (6.6 ft)

Length of Smart Sensor Network Cable*

0.5 m (1.6 ft)


The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
