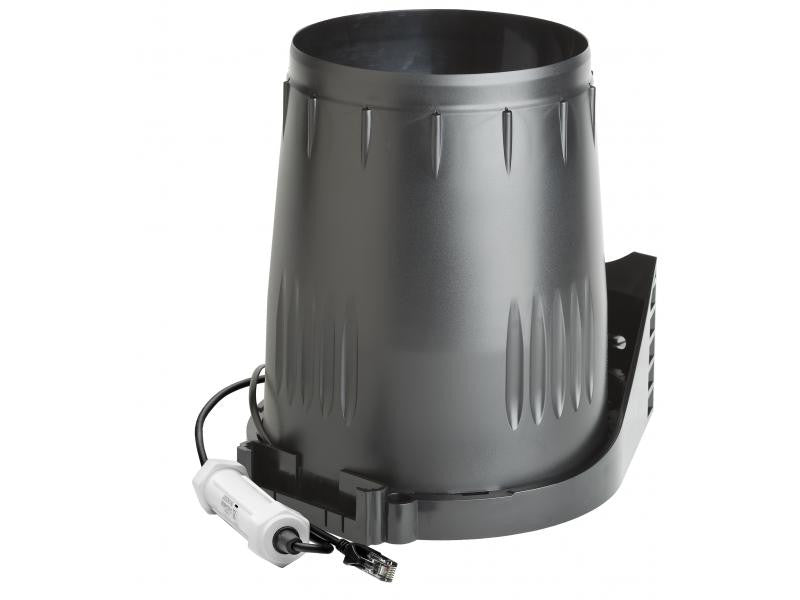

Davis® Rain Gauge Smart Sensors are compatible with all HOBO weather station loggers, HOBOware, and HOBOlink. They offer the same ease-of-use as existing Onset Smart Sensors, providing cost-effective HOBO weather stations for projects on a tight budget. The sensors feature a plug-in modular connector for easy installation, and all configuration parameters are stored in the sensor and automatically communicated to the logger, eliminating the need for programming or extensive setup.
- Designed to meet World Meteorological Organization (WMO) guidelines
In what environment does this sensor operate?
This sensor operates in an outdoor environment.
What measurements does this sensor support?
The S-RGC-M002 sensor supports the following measurement: Rainfall
|Measurement Range||0 to 10.2 cm (0 to 4 in.) per hour, maximum 4,000 tips per logging interval|
|Accuracy||±4.0%, ±1 rainfall count between 0.2 and 50.0 mm (0.01 and 2.0 in.) per hour; ±5.0%, ±1 rainfall count between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour|
|Resolution||0.01 in. (S-RGC-M002) or 0.2 mm (S-RGD-M002)|
|Calibration||Requires annual calibration; can be field calibrated|
|Operating Temperature Range||0° to 50°C (32° to 122°F), survival -40° to 75°C (-40° to 167°F)|
|Housing||UV-stabilized ABS plastic|
|Mechanism||Tipping bucket with magnetic reed switch pivots on metal shaft|
|Dimensions||16.5 cm opening diameter (6.5 in.) x 24 cm (9.5 in.) high; 214 cm2 (33.2 in.2) collection area|
|Weight||1 kg (2 lb, 3 oz)|
|Bits per Sample||12|
|Number of Data Channels*||1|
|Cable Length Available||2 m (6.6 ft)|
|Length of Smart Sensor Network Cable*||0.5 m (1.6 ft)|
