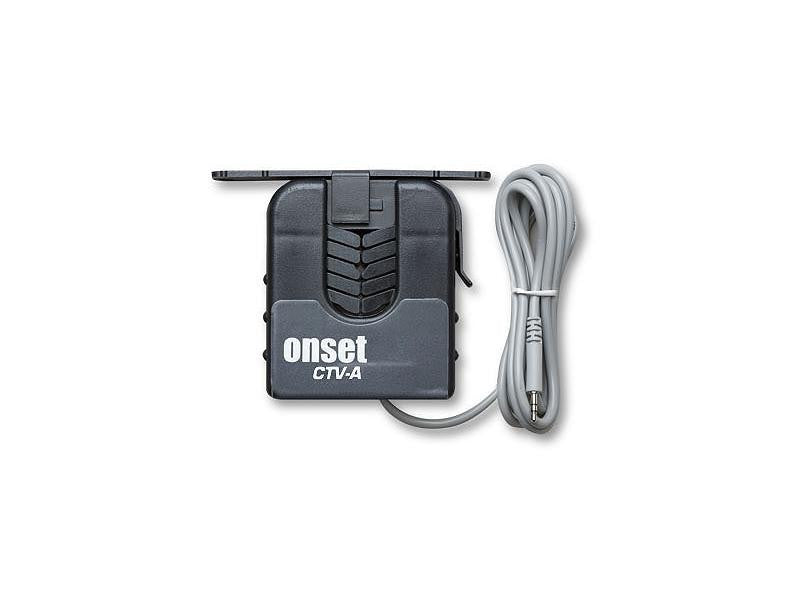

A split-core AC current sensor responsive over the range of 2 to 20 amps AC for use with U12, UX120 and ZW data loggers with external input channels. With an input current of AC current, sine wave, single phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag.
The molded-plastic housing is rated for indoor use per UL508.
- UL listed
- Sensor power induced from line voltage
- Self-gripping split-core design for fast installation
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
This sensor supports the following measurement: AC Current
|Accuracy with H8:||±5.0% of full scale|
|Accuracy with U12:||±4.5% of full scale|
|Accuracy with UX120-006M:||±2.1% of full scale|
|Response time (from 10% to 90% of amplitude):||See table|
|Input current:||AC current, sine wave, single phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag|
|Voltage rating:||600 VAC|
|Construction and operating environment:||Molded plastic housing for indoor use per UL508; pivoting leg (leg on CTV-D and CTV-E units is fully removable);UL listed.|
|Cable length:||1.8m cable (6 foot)|
|Part No.||Range (Amps AC)||Approximate Response Time (milliseconds)||Dimensions|
|Window||Outer Length||Outer Width||Height|
|CTV-A||2–20||440||2.8 cm x 2.3 cm 1.1 in. x 0.9 in.||7.4 cm 2.9 in||6.6 cm 2.6 in||2.5 cm 1.0 in|
|CTV-B||5–50||200||2.8 cm x 2.3 cm 1.1 in. x 0.9 in||7.4 cm 2.9 in||6.6 cm 2.6 in||2.5 cm 1.0 in|
|CTV-C||10–100||100||2.8 cm x 2.3 cm 1.1 in. x 0.9 in||7.4 cm 2.9 in||6.6 cm 2.6 in||2.5 cm 1.0 in|
|CTV-D||20–200||450||3.8 cm x 3.3 cm 1.5 in. x 1.3 in||9.9 cm 3.9 in||11.9 cm 4.7 in||2.8 cm 1.1 in|
|CTV-E||60–600||490||7.4 cm x 6.4 cm 2.9 in. x 2.5 in||13.5 cm 5.3 in||15.0 cm 5.9 in||2.8 cm 1.1 in|
USB Data Loggers - requires external sensor(s)U12-008 4-Channel External Data Logger
UX120-006M 4-Channel Analog Data Logger
USB Data Loggers - optional external sensorsU12-012 Temperature/Relative Humidity/Light/External Data Logger
U12-013 Temperature/Relative Humidity/2 External Channel Data Logger
Wireless Data Nodes - via receiver/USBZW-005 Four-Channel Data Node
ZW-006 Four Analog Port Data Node
ZW-007 Four Analog Port Data Node
ZW-008 Four Analog Port Data Node
