Volt AC Potential Transformer Sensor

SKU:
Vendor:Onset

Availability: Available Item

$141.00

Quantity :

Qty	Price
Buy 1	$144.00 ea
Buy 10	$136.80 ea

Important Info
Specifications

Overview

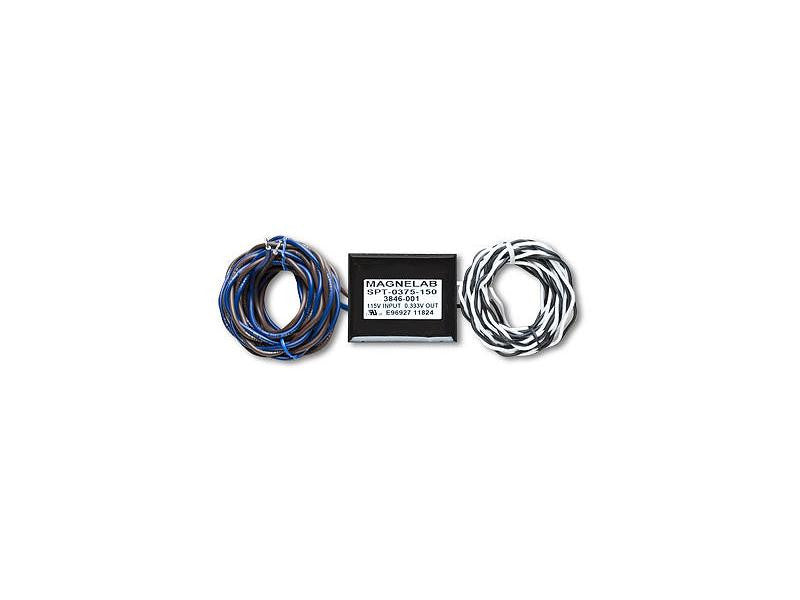

The Magnelab AC Potential Transformer is used with the FlexSmart TRMS Module to provide accurate measurement of AC voltage. One or two PTs can be used with each FlexSmart TRMS module. This sensor offers an accuracy of ±1% (from 10% to 130% of rated voltage), but because this transformers ties directly into the line, it should be used only by qualified personnel.

Highlighted Features

2 input channels of AC Current and/or Voltage
Measures True RMS for accurate readings of sinusoidal and non-sinusoidal waveforms

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

This sensor supports the following measurement: AC Voltage

Measurement range: 150, 300, 600 Volts AC
Accuracy: ±1% (from 10% to 130% of rated voltage)
Phase angle: <1 degree
Output signal to FlexSmart Module: 0.333 Volt at rated input voltage
Connections: 8-ft PVC insulated wire, UL1015
High voltage input: #14 AWG, blue/brown
Low voltage output: #22 AWG twisted pair, black/white
Construction: Epoxy filled ABS plastic
Dimensions: 5.5 cm x 3.9 cm x 3.1 cm (2.2" x 1.6" x 1.2")
Weight: 491.2g (17.33oz)
Number of data channels: 1
