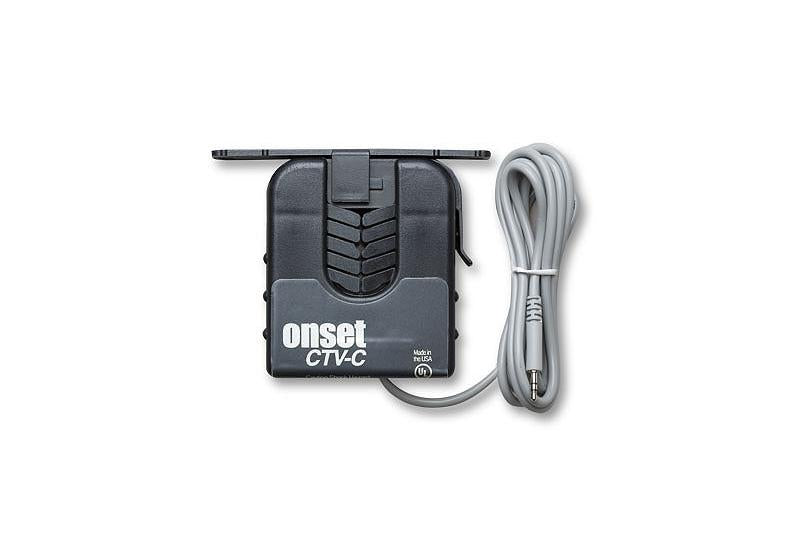

10-100 Amp split-core AC current Sensor

Sensors

10-100 Amp split-core AC current Sensor

  • Vendor:Onset

Availability: In Stock
$149.00
Qty Price
Buy 1 $149.00 ea
Buy 10 $141.55 ea

Overview

A split-core AC current sensor responsive over the range of 10 to 100 amps AC for use with U12, UX120, and ZW data loggers with external input channels. With an input current of AC current, sine wave, single phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag.

The molded-plastic housing is rated for indoor use per UL508.

Highlighted Features

  • UL listed
  • Sensor power induced from line voltage
  • Self-gripping split-core design for fast installation

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The CTV-C sensor supports the following measurement: AC Current

Range: 10-100 Amps
Accuracy with H8: ±5.0% of full scale
Accuracy with U12: ±4.5% of full scale
Accuracy with UX120-006M: ±2.1% of full scale
Response time (from 10% to 90% of amplitude): see table
Input current: AC current, sine wave, single phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag
Voltage rating: 600 VAC
Construction and operating environment: Molded plastic housing for indoor use per UL508; pivoting leg (leg on CTV-D and CTV-E units is fully removable); UL listed.
Cable length: 1.8m cable (6 foot)
Dimensions: see table

Part No. Range (Amps AC) Approximate Response Time (milliseconds) Dimensions
Window Outer Length Outer Width Height
CTV-A 2–20 440 2.8 cm x 2.3 cm 1.1 in. x 0.9 in. 7.4 cm 2.9 in 6.6 cm 2.6 in 2.5 cm 1.0 in
CTV-B 5–50 200 2.8 cm x 2.3 cm 1.1 in. x 0.9 in 7.4 cm 2.9 in 6.6 cm 2.6 in 2.5 cm 1.0 in
CTV-C 10–100 100 2.8 cm x 2.3 cm 1.1 in. x 0.9 in 7.4 cm 2.9 in 6.6 cm 2.6 in 2.5 cm 1.0 in
CTV-D 20–200 450 3.8 cm x 3.3 cm 1.5 in. x 1.3 in 9.9 cm 3.9 in 11.9 cm 4.7 in 2.8 cm 1.1 in
CTV-E 60–600 490 7.4 cm x 6.4 cm 2.9 in. x 2.5 in 13.5 cm 5.3 in 15.0 cm 5.9 in 2.8 cm 1.1 in

USB Data Loggers - requires external sensor(s)

U12-008 4-Channel External Data Logger



UX120-006M 4-Channel Analog Data Logger



USB Data Loggers - optional external sensors

U12-012 Temperature/Relative Humidity/Light/External Data Logger



U12-013  Temperature/Relative Humidity/2 External Channel Data Logger





Wireless Data Nodes - via receiver/USB

ZW-005 Four-Channel Data Node



ZW-006 Four Analog Port Data Node



ZW-007 Four Analog Port Data Node



ZW-008 Four Analog Port Data Node
