Onset | SKU:
E348-U12-015-02

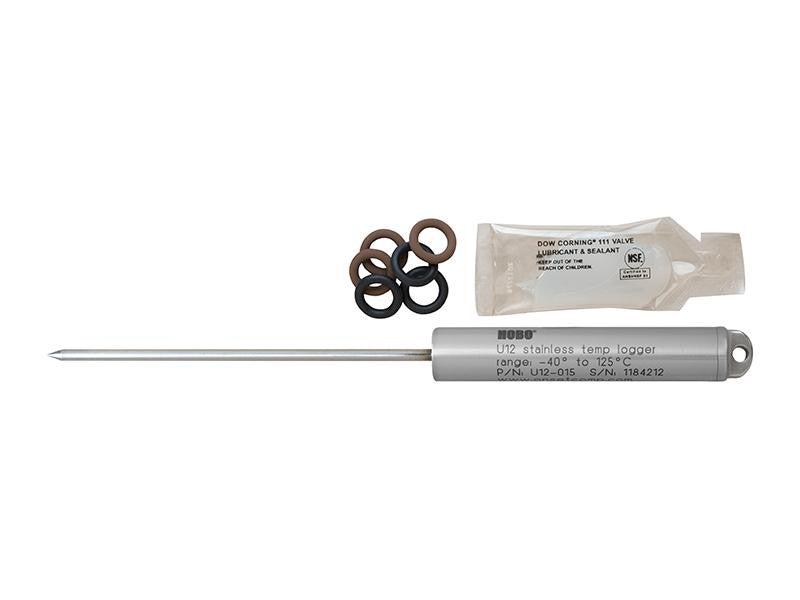

HOBO 5-Inch Probe Temperature Data Logger
Regular price
$839.00 CAD
Unit price
/
Unavailable
HOBO 5-Inch Probe Temperature Data Logger - 1+ is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
HOBO 5-Inch Probe Temperature Data Logger
Regular price
$839.00 CAD
Unit price
/
Unavailable
Description
Description
Important Info
Overview

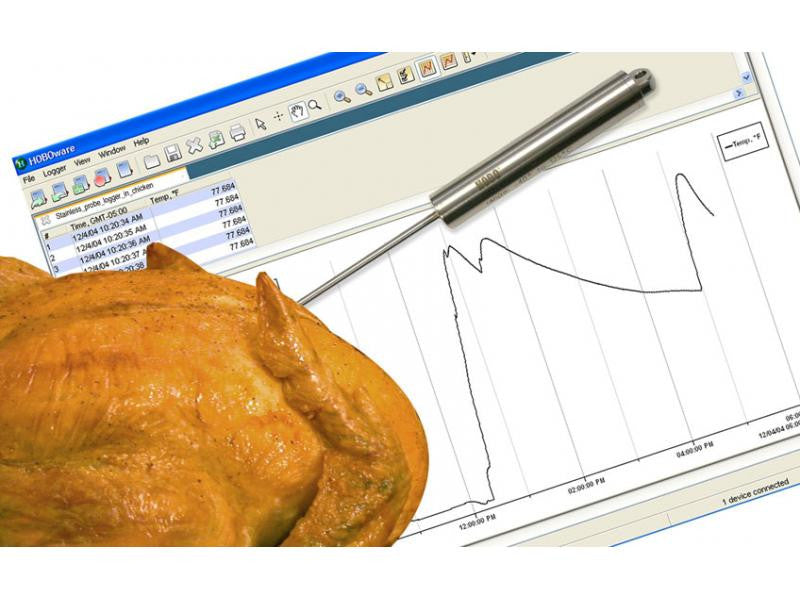

The HOBO U12 Stainless 5-inch Probe Temperature Data Logger is ideal for monitoring internal temperature of foods or any application where fast response is critical.
Highlighted Features
- Food-grade 316 Series Stainless Steel
- High-accuracy, extended temperature range
- Suitable for high pressure applications to 2200psi
- Fast readout via direct USB interface
- Compatible with HOBOware and HOBOware Pro software for logger setup, graphing and analysis
In what environment does this data logger operate?
This data logger operates in indoor, outdoor and underwater environments.
What measurements does this data logger support?
The U12-015-02 data logger supports the following measurement: Temperature
Specifications
| Measurement range: | -40° to 125°C (-40° to 257°F) |
| Accuracy: | ± 0.25°C from 0° to 50°C (± 0.45°F from 32° to 122°F), see Plot A in manual |
| Resolution: | 0.03°C at 25°C (0.05°F at 77°F), see Plot A in manual |
| Drift: | 0.05°C/year + 0.1°C/1000 hrs above 100°C (0.09°F/year + 0.2°F/1000 hrs above 212°F) |
| Response time in 1 m/s (2.2 mph) airflow | |
|---|---|
| U12-015: | >< 10 minutes, typical to 90% |
| U12-015-02: | 2.25 minutes, typical to 90% |
| Response time in water | |
| U12-015: | < 3.5 minutes, typical to 90% |
| U12-015-02: | 20 seconds, typical to 90% |
| Time accuracy: | ± 2 minute per month at 25°C (77°F), see Plot B in manual |
| Operating environment: | Air, water, steam, 0 to 100% RH |
| Operating temperature | |
| Logging: | -40° to 125°C (-40° to 257°F) |
| Launch/readout: | 0° to 50°C (32° to 122°F), per USB specification |
| Battery life: | 3 year typical use, factory replaceable |
| Memory: | 64K bytes (43,000 12-bit measurements) |
| Construction: | Food-grade 316 Series Stainless Steel |
| Weight | |
| U12-015: | 72 g (2.5 oz) |
| U12-015-02: | 82 g (2.9 oz) |
| Logger dimensions: | 17.5 x 101.6 mm (0.69 x 4.00 inches) |
| Probe dimensions: | (U12-015-02 only): 4 x 124 mm (0.16 x 4.90 inches) |
| Pressure/depth rating: | 2200 psi (1500 m/4900 ft) maximum |
| Vibration rating: | Navy spec: NAVMAT P-9492 (non-probe model only) |
| NIST certificate: | Available for additional charge; temperature range -30° to 120°C (-22° to 248°F) |
| -The CE Marking identifies this product as complying with all relevant directives in the European Union (EU) | |
Compatible Items
SOFTWARE
Graphing & Analysis
Data Offload - Base Stations - Shuttles - Couplers
O-Rings
Carrying Case
Graphing & Analysis
- BHW-PRO HOBOware Pro CD or USB Drive (USB Cable Included) Software
- BHW-PRO-DLD HOBOware Pro - Mac/Win (Download Only) Software
Data Offload - Base Stations - Shuttles - Couplers
- U-DT-1 HOBO U-Shuttle
O-Rings
- U12-015-ORING-E Replacement O-ring kit (EPDM) Replacement
- U12-015-ORING-V Replacement O-ring kit (Viton) Replacement
Carrying Case
- CASE-PELICAN-1510 Pelican Case
- COMPLIANCE CERT Compliance Certification
- NIST-RH Initial Purchase RH NIST Calibration Service Certification
- NIST-SETUP Setup Charge for NIST Traceable Certification
- NIST-TEMP-POINT NIST Temperature point Certification
