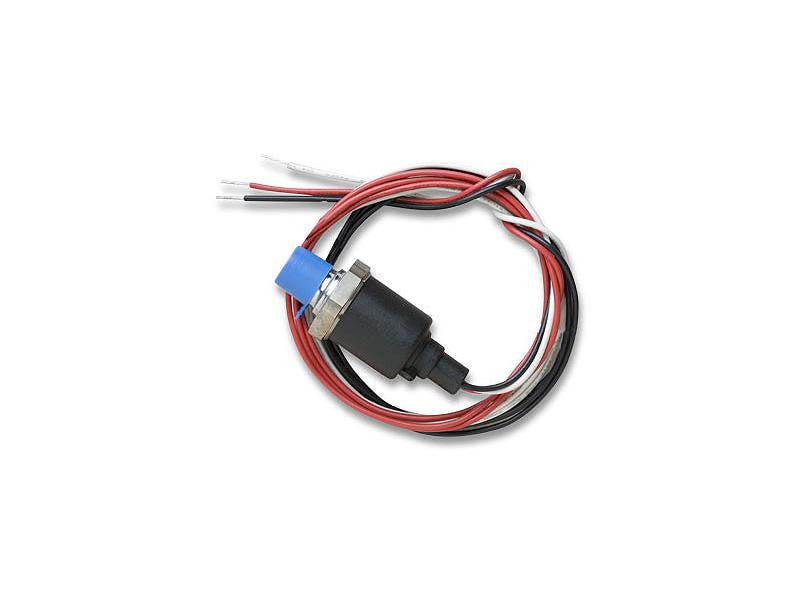

Ashcroft Gauge Pressure Sensor
Overview
The psig Ashcroft Gauge Pressure Sensor provides precision pressure measurements in compressed air systems, water, or other compatible gases and fluids with an accuracy of ±1% FS from -20° to 85°C (-4° to 185°F) and only ±1.5% FS -40° to -20°C and 85° to 125°C (-40° to "‚¬œ4°F and 185° to 257°F) . This sensor requires the FlexSmart Analog Module.
Requires analog port selection during U30 system configuration and use of a S-FS-CVIA when using the H22-001 data logger. When using a U12 data logger, this sensor requires an 0-5 Vdc analog input cable (CABLE-ADAP5) and external power provided by an AC adapter (AC-SENS-1).
To download additional information and manuals from Ashcroft click here.
Highlighted Features
- High-performance pressure transducer for industrial applications.
- 1/4" NPT stainless-steel pressure connection.
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
This sensor supports the following measurement: Gauge Pressure
| Measurement ranges: | 100, 200, 500 psig |
| Compensated temp range: | -40° to 125°C (-40° to 257°F) |
| Accuracy: | ±1% FS from -20° to 85°C (-4° to 185°F) ±1.5% FS -40° to -20°C and 85° to 125°C (-40° to "‚¬œ4°F and 185° to 257°F) |
| Non-linearity: | less than ±0.1% of span typical |
| Non-repeatability: | less than ±0.03% of span typical |
| Hysteresis: | less than ±0.01 of span typical |
| Stability: | less than ±0.25% of span/year |
| Durability: | tested to 50 million cycles |
| Overpressure: | 200% FS |
| Response time: | less than 1 msec |
| Power: | 9-36 VDC, 5mA |
| Operating temp range: | -40° to 125°C (-40° to 257°F) |
| Operating humidity range: | 0 to 100% RH, no effect |
| Output signal to FlexSmart module: | 0-5 VDC, 3 wire |
| Insulation breakdown voltage: | 100 VAC |
| Insulation resistance: | greater than 100 megohms at 100 VDC |
| Construction: | Shielded cable, 24 AWG, PVC jacket, 1-meter |
| Pressure connection: | 1/4"? NPT 304 stainless steel |
| Sensor material: | 17-4PH stainless steel |
| Housing material: | 20% glass reinforced nylon, fire retardant to UL94 V1 |
| CE compliance: | Per EN 61326: 1997 + A1: 1998 + A2: 2001, Annex A (Heavy Industrial) |
| Dimensions: | 2.9 cm diameter x 6.4 cm long (1.15 in. diameter x 2.5 in. long) |
| Outer cable diameter dimension: | 0.21 in. (5.4-mm) |
| Weight: | 89.4g (3.15oz) |
| Number of data channels: | 1 |
