Electronic Switch Pulse Input Adapter - Sensor
Description
Description
Important Info
Overview

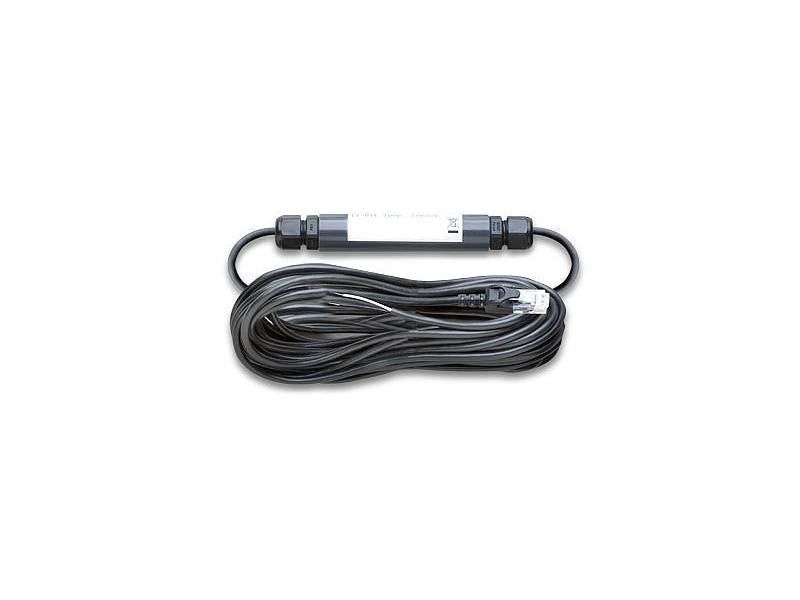

The Electronic Switch Pulse Input Adapter connects sensors with pulse outputs to data loggers with smart-sensor inputs. This Smart Sensor is compatible with electronic switch closures such as FET or open-collector outputs, or CMOS-level logic signals with a maximum input frequency of 120 Hz (120 pulses per second). See how the pulse recorder works.
Highlighted Features
- Plug-n-play adapter for pulse output sensors
- Automatically recognized by HOBO Energy Logger
- 6m cable length (extension cables available)
In what environment does this sensor operate?
This sensor operates in indoor and outdoor environments.
What measurements does this sensor support?
The S-UCC-M001 sensor supports the following measurement: Pulse Input
Specifications
| Maximum input frequency: | 120 Hz (120 pulses per second) |
| Measurement range: | 0 "€œ 65,533 pulses per logging interval |
| Resolution: | 1 pulse |
| Lockout time: | 45 µs ± 10% |
| Recommended input type: | Electronic solid state switch closure or CMOS-level digital output (example: FET, opto-FET or open collector) |
| Preferred switch state: | Active low input Normally open |
| Edge detection: | Falling edge, Schmitt Trigger buffer (logic levels: low €°¤ 0.6 V, high €°¥ 2.7 V) |
| Minimum pulse width: | 1 ms |
| Input/output impedance: | 100 K© |
| Open circuit input voltage: | 3.3 V |
| Maximum input voltage: | 3.6 V |
| User connection: | 24 AWG wires, 2 leads: white(+), black(-) |
| Operating temperature range: | -40° to 75°C (-40° to 167°F) |
| Overall cable length: | 1 m (3.3 ft.), 6.5 m (21 ft.) |
| Housing: | Weatherproof PVC housing protects input adapter electronics |
| Housing dimensions: | 14 x 0.95 cm (5.5 x 0.375 in.) |
| Weight: | 310 g (11 oz.) |
| Bits per sample: | 16 |
| Number of data channels: | 1 |
| Measurement averaging option: | No (reports the number of pulses over the logging interval) |
