Temperature (6') Sensor

Important Info

Overview

A faster response version of our TMC6-HD complete with a plated copper sensor probe that can be mounted to a pipe or flat surface. The sensor is packaged with its own accessories for either strapping to a pipe or attaching to a flat surface.  For use with HOBO U-Series, UX120-006M external-channel data loggers or ZW series wireless datanodes.

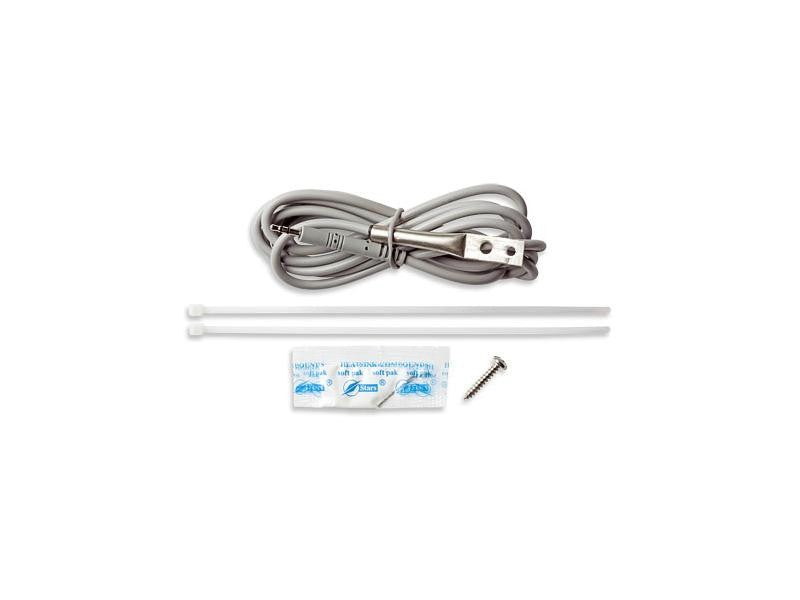

Parts Included:

• Thermal grease is included for improved thermal conductivity.
• two tie wraps
• a screw

Highlighted Features

• Faster response time
• Suitable for pipe mounting
• Accessories included
• Can be plugged directly into the external input jacks of U12, UX120, or ZW Family loggers to expand the range of measurement options and applications.

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The TMC6-HE sensor supports the following measurement: Temperature

Specifications

Measurement range: -40° to 100°C (-40° to 212°F)
Accuracy:
w/U12: ±0.25°C from 0° to 50°C (±0.45°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum;
w/ZW: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum;
w/UX120-006M: ±0.15°C from 0° to 70°C (±0.27°F from 32° to 158°F), insert probe 2.3 cm (0.9 inches) minimum;
Resolution:
w/U12: 0.03° at 20°C (0.05° at 68°F);
w/ZW: 0.02°C at 25°C (0.04°F at 77°F);
w/UX120-006M: 0.002° at 25°C (0.003° at 77°F);
Drift: <0.1°C (<0.2°F) per year
Response time in air: 3 min. typical to 90% in air moving 1 m/sec (2.2 mph)
Housing: Copper-plated sensor tip
Dimensions: 0.9 x 5.8 cm (0.38 x 2.30 inches)
Cable length: 1.8m (6 feet)
Weight: 34 g (1.1 oz)
