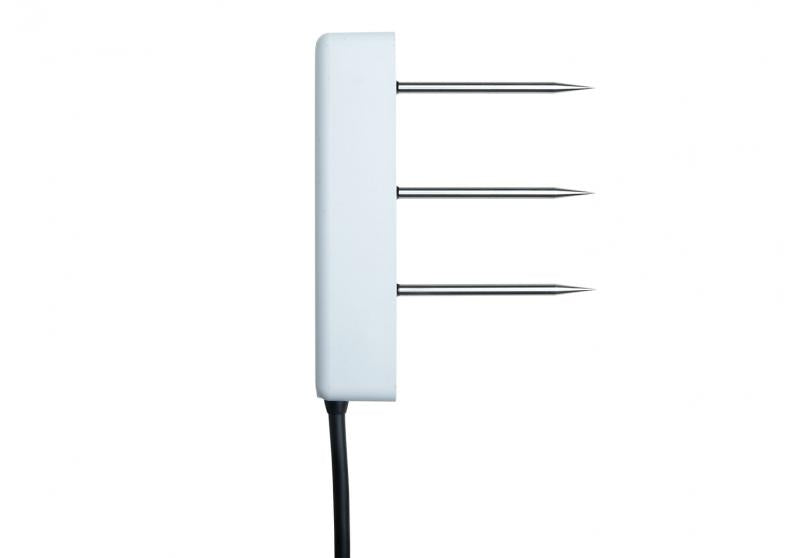

HOBOnet T11 Soil Moisture/Temp Sensor

Sensors

HOBOnet T11 Soil Moisture/Temp Sensor

  • Vendor:Onset

Availability: Available Item
$815.00
Qty Price
Buy 1 $815.00 ea
Buy 10 $774.25 ea

A complete system requires at least one HOBO RX3000 Remote Monitoring Station, a HOBOnet Wireless Manager (RXMOD-RXW-xxx), and a HOBOnet Wireless Sensor, OR one HOBO MicroRX station (which has an integrated HOBOnet Wireless Manager) and a HOBOnet Wireless Sensor. HOBOnet Wireless Repeaters (RXW-RPTR-900) can be added to extend the range.

Overview

The HOBOnet T11 is a wireless sensor that works with the HOBOnet system to not only measure soil moisture (volumetric water content) with better accuracy and precision but also provide soil temperature measurements. Designed to withstand harsh environmental conditions, these durable sensors last up to 10 years, so you can leave them in the field for extended periods of time. Sharpened stainless-steel probes make installation easy, even in hard soil, and a large volume of influence provides better results and a more accurate view of soil moisture. Featuring the METER TEROS 11 soil moisture and temperature sensor, the HOBOnet T11 is backed by over 20 years of soil moisture research and leverages METER’s trademark 70MHz frequency capacitance technology, minimizing salinity and textural effects.

The HOBOnet system is a cost-effective and scalable wireless sensor network for web-enabled monitoring of field conditions for applications such as crop management, research, and greenhouse operations. And because it’s wireless, you can deploy a network of sensors to easily monitor multiple points with a single system, while avoiding the risk of long cables that can interfere with field operations and are potentially vulnerable to nearby lightning strikes.

Sensors are easily linked to the network, and data can be accessed through HOBOlink®, Onset's innovative cloud-based software platform.

We suggest using the TEROS Verification Clip, available from the Compatible Items tab.  TEROS Verification Clip provides a convenient way to confirm the operation and soil moisture accuracy of the HOBOnet T11 and T12 sensors. Attaching this clip to a TEROS sensor provides a known soil moisture level for verifying measurement accuracy without needing to go through the work of testing the sensor in actual soils, which would normally require weighing soil samples and drying them in an oven.

Highlighted Features

  • Soil moisture (volumetric water content) and soil temperature measurements with one device
  • Sensor lasts up to 10 years in the field
  • Largest volume of influence (1010 mL) relative to sensor size, resulting in more accurate soil moisture measurements
  • Easy installation with sharpened stainless-steel probes that are more resistant to damage/deterioration
  • Less sensor-to-sensor variability

In what environment does this sensor operate?

This sensor operates in an outdoor environment.

What measurements does this sensor support?

The RXW-T11-xxx sensor supports the following measurements: Soil Moisture and Soil Temperature

Soil Moisture: Volumetric Water Content (VWC)
Measurement Range* 0.00 to 0.70 m³/m³ in mineral soils
Accuracy ±0.030 m³/m³ (±3%) typical from 0 to 50°C (32 to 122°F); ±0.020 m³/m³ (±2%) with soil specific calibration
Resolution 0.001 m³/m³
Dielectric Measurement Frequency 70 MHz
Temperature**
Measurement Range -40 to 60°C (-40 to 140°F)
Accuracy ±1.0°C (1.8°F) from -40 to 0°C (-40 to 32°F)
±0.5°C (0.9°F) from 0 to 60°C (32 to 140°F)
Resolution 0.1°C (0.18°F)
Wireless Mote
Operating Temperature Range Sensor: -40 to 60°C (-40 to 140°F)
Mote: -25° to 60°C (-13° to 140°F) with rechargeable batteries
-40 to 70°C (-40 to 158°F) with lithium batteries
Radio Power 12.6 mW (+11 dBm) non-adjustable
Transmission Range Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high
Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high
Wireless Data Standard IEEE 802.15.4
Radio Operating Frequencies RXW-T11-900: 904–924 MHz
RXW-T11-868: 866.5 MHz
RXW-T11-921: 921 MHz
RXW-T11-922: 916–924 MHz
Modulation Employed OQPSK (Offset Quadrature Phase Shift Keying)
Data Rate Up to 250 kbps, non-adjustable
Duty Cycle <1%
Maximum Number of Motes 50 motes per one HOBOnet Wireless Sensor Network
Battery Type/
Power Source
Two AA 1.2V rechargeable NiMH batteries, powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (-40 to 158°F)
Battery Life With NiMH batteries: Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F) and positioned toward the sun (see Mounting and Positioning the Mote), operation outside this range will reduce the battery service life
With lithium batteries: 1 year, typical use
Memory 16 MB
Dimensions Sensor: 7.47 x 9.4 x 2.39 cm (2.94 x 3.7 x 0.94 inches)
Sensor needle length: 5.4 cm (2.13 inches)
Sensor needle diameter: 0.32 cm (0.13 inches)
Cable length: 5 m (16.4 ft)
Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
Weight RXW-T11-xxx sensor and cable: 245 g (8.64 oz)
Mote: 223 g (7.87 oz)
Materials Sensor: ASA plastic body with polyurethane epoxy filling and stainless steel pins
Cable: PVC, UV resistant and rodent repellent
Mote: PCPBT, silicone rubber seal
Environmental Rating Mote: IP67, NEMA 6
Compliance Marks Federal Communication Commission     RXW-T11-900
European Union Compliance     RXW-T11-868
Taiwan Compliance     RXW-T11-921
Australia and New Zealand Complicance     RXW-T11-922

* The sensor data can be post-calibrated if necessary (e.g. the sensor is used in non-mineral soil types or higher than standard accuracy is required). Users can apply a calibration equation to the data exported from HOBOlink. The VWC range will depend on the calibration equation.

** Temperature measurement, for applicable sensors, may not be accurate if sensor is not fully immersed in medium of interest, due to longer equilibration time.

Data Loggers
RX3000               RX3000 Remote Monitoring Station Data Logger
RX2100               MicroRX Station

Accessories
TEROS-CLIP        TEROS Verification Clip

  • cable ties
  • screws
