Ultrasonic Wind Speed & Direction Sensor
Overview

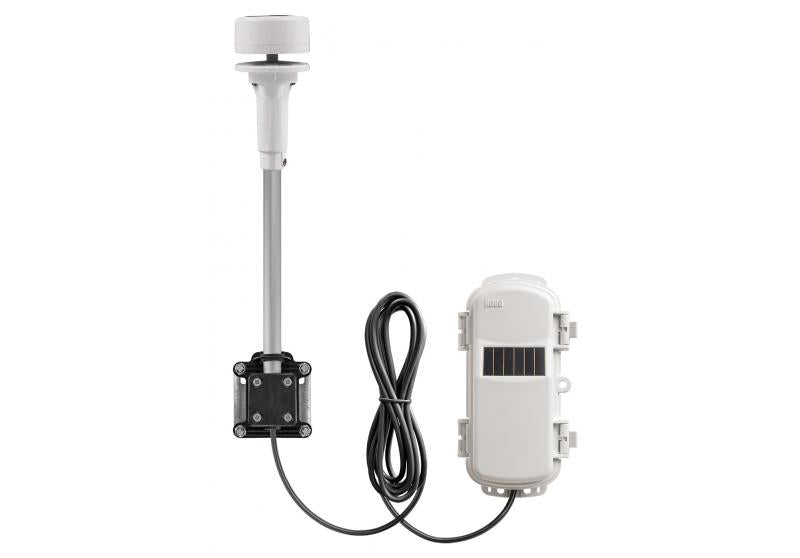

The HOBOnet Wireless Ultrasonic Wind Speed & Direction Sensor is compact and rugged with no moving parts. Because this sensor is ultrasonic it can measure very low wind speeds, down to 0.4 m/s (compared to 1.0 m/s for our mechanical sensors). HOBOnet Wireless Sensors communicate data directly to the HOBO RX3000 weather station or pass data through other wireless sensors back to the central station. They are preconfigured and ready to deploy, and data is accessed through HOBOlink, Onset’s innovative cloud-based software platform.
Highlighted Features
Sensor Features
- Compact and rugged with no moving parts
- No starting threshold – suitable for low wind speeds
- No wind direction dead band – accurate wind data in all directions
- Powered by its own built-in solar panel
Wireless Features
- 900 MHz wireless mesh self-healing technology
- 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
- Up to 50 wireless sensors per RX3000
- Simple button-push to join the HOBOnet wireless network
- Onboard memory to ensure no data loss
- Powered by rechargeable AA batteries and built-in solar panel
In what environment does this sensor operate?
This sensor operates in an outdoor environment.
What measurements does this sensor support?
The RXW-WCG-xxx sensor supports the following measurement: Wind
Sensor |
Wind Speed/Gust |
Wind Direction |
| Measurement Range | 0 to 41.16 m/s (0 to 92.07 mph) | 0 to 359 degrees |
| Accuracy | ±0.8 m/s (1.79 mph) or ±4% of reading, whichever is greater | 0.2 to 3 m/s (0.44-6.7 mph): ±4 degrees >3 m/s (6.7 mph): ±2 degrees |
| Resolution | 0.4 m/s (0.89 mph) | 1 degree (0 to 359 degrees) |
| Measurement Definition | Wind speed readings are taken every three seconds for the duration of the logging interval Wind speed: Average speed for the entire logging interval Gust speed: The highest three-second wind recorded during the logging interval See Measurement Operation. |
Unit vector averaging used; vector components for each wind measurement are calculated every three seconds for duration of logging interval (see Measurement Operation) |
| Operating Temperature Range Without Icing | -15°C to 55°C (5°F to 131°F) | |
Wireless Mote |
||
| Operating Temperature Range | -25° to 60°C (-13° to 140°F) with rechargeable batteries -40 to 70°C (-40 to 158°F) with lithium batteries |
|
| Radio Power | 12.6 mW (+11 dBm) non-adjustable | |
| Transmission Range | Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high |
|
| Wireless Data Standard | IEEE 802.15.4 | |
| Radio Operating Frequencies | RXW-WCG-900: 904-924 MHz RXW-WCG-868: 866.5 MHz RXW-WCG-922: 916-924 MHz |
|
| Modulation Employed | OQPSK (Offset Quadrature Phase Shift Keying) | |
| Data Rate | Up to 250 kbps, non-adjustable | |
| Duty Cycle | <1% | |
| Maximum Number of Motes | 50 motes per one RX Wireless Sensor Network | |
| Battery Type/ Power Source |
Sensor: Photovoltaic panel, LIFEP04 3.2 V -600 mAh battery Mote: Two AA 1.2 V rechargeable NiMH batteries powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (-40 to 158°F) |
|
| Battery Life | With NiMH batteries: Typical 3-5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F) and positioned toward the sun (see Deployment and Mounting), operation outside this range will reduce the battery service life With lithium batteries: 1 year, typical use |
|
| Memory | 16 MB | |
| Dimensions | Sensor length: 380 mm (14.96 inches) Sensor head diameter: 60 mm (2.36 inches) Sensor rod diameter: 16 mm (0.63 inches) Cable length: 3 m (9.8 ft) Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches) |
|
| Weight | Sensor and cable: 200 g (7 oz) Mote: 223 g (7.87 oz) |
|
| Materials | Sensor: Polyacetal Mote: PCPBT, silicone rubber seal |
|
| Environmental Rating | Sensor and cable: Weatherproof Mote: IP67, NEMA 6 |
|
| Compliance Marks |
 RXW-WCG-900 |
|
 RXW-WCG-868 |
||
 RXW-WCG-922 |
||
