AT-100 microCache Bluetooth Micro Logger

Apogee Instruments

AT-100 microCache Bluetooth Micro Logger

  • Vendor:Apogee

Availability: Available Item
$541.00
Qty Price
Buy 1 $541.00 ea
Buy 10 $513.95 ea

Connects directly to several Apogee sensors. Features live meter mode, stand-alone datalogging, and graphing using our free Apogee Connect App for iOS and Android.

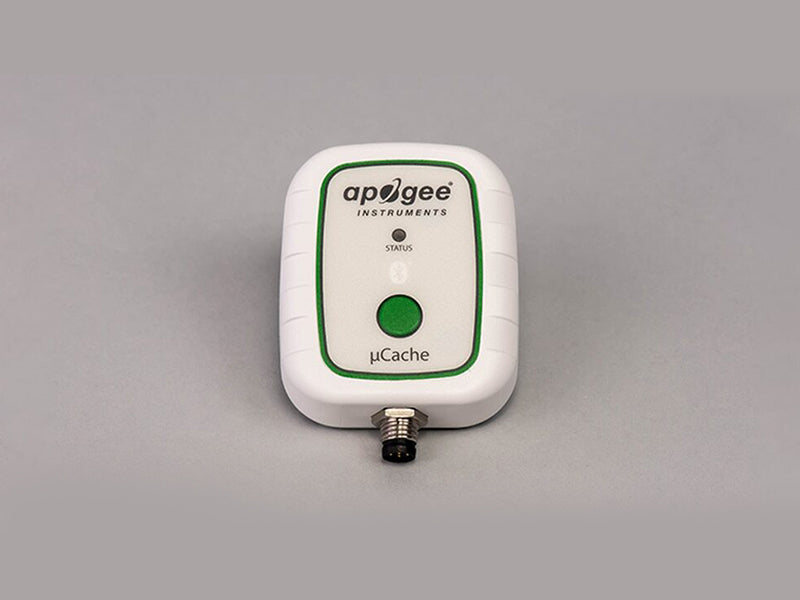

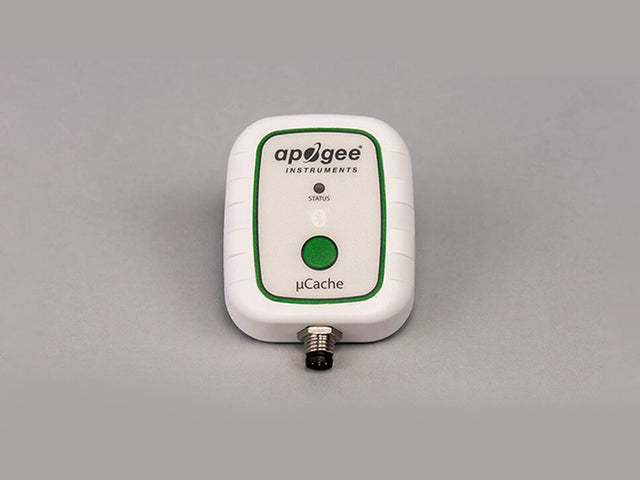

 The new Apogee microCache (µCache) is a ruggedized, battery-powered, Bluetooth® Low Energy, single-sensor datalogging device that currently interfaces with Apogee’s quantum sensor line, with other Apogee sensors coming soon. When used as a standalone field-logging device, the unit features enough memory to store 9 months of one minute data using the internal battery. Data can be viewed on your mobile device using our free Apogee Connect App software for iOS and Android devices, with a Wifi gateway coming soon. Apogee Connect features live meter mode, real-time graphing, and the ability to send datasets to your computer via email.

View Real-time Data
Transmits real-time data to iOS and Android devices using the Apogee Connect app.

Rugged Housing
IP67 rated for harsh environments.

Datalogging Mode
Stores over 400,000 entries, (9 moths of 1-minute data) with programmable sampling and logging intervals.

Compatible with Multiple Apogee Sensors

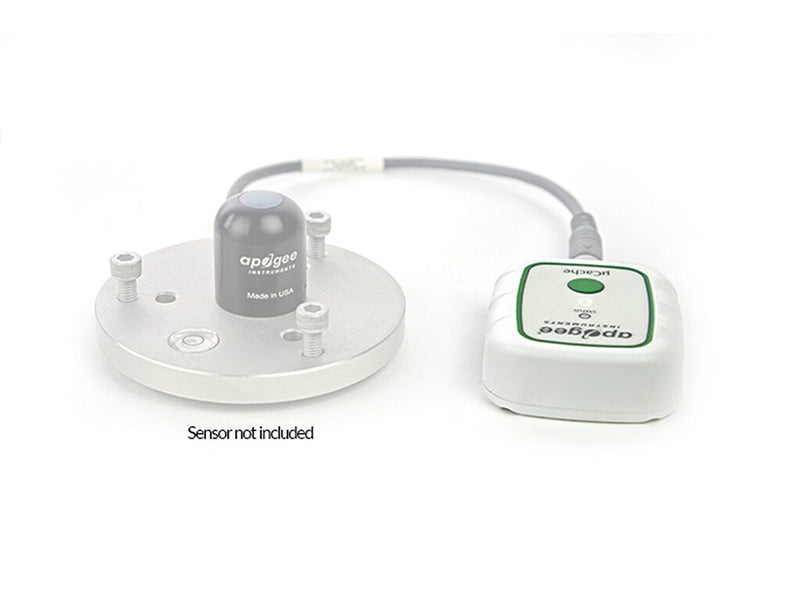

Currently connects with the SQ-110, SQ-120, SQ-500, with the SQ-620, SQ-640, albedometer, S2-141, and more coming soon!

High Resolution Readings
Processor features a 24 bit analog-to-digital converter.

Warranty and Support
The µCache is backed by a 4 year warranty and outstanding customer support.

Communication Protocol: Bluetooth® Low Energy (Bluetooth 4.0+)

Bluetooth Range: ~45 m (line-of-sight)

Data Logging Capability: Averaging Interval: 1-60 minutes; Sampling Interval: ≥ 1 second

Data Log Capacity: Over 400,000 Entries (~9 months at a 1-minute logging interval)

Time Accuracy: ± 30 seconds per month at 0° C ~ 70° C

Battery Type: 2/3 AA 3.6 Volt Lithium Battery

Battery Life: ~1 year w/ 10-second sampling interval and an average of 5 minutes daily connected time; ~2 years w/ 60-second sampling interval and an average of 5 minutes daily connected time

Operating Environment: -40 to 85 C

Dimensions: 66 mm length, 50 mm width, 18 mm height

Weight: 52 g

IP Rating: IP67

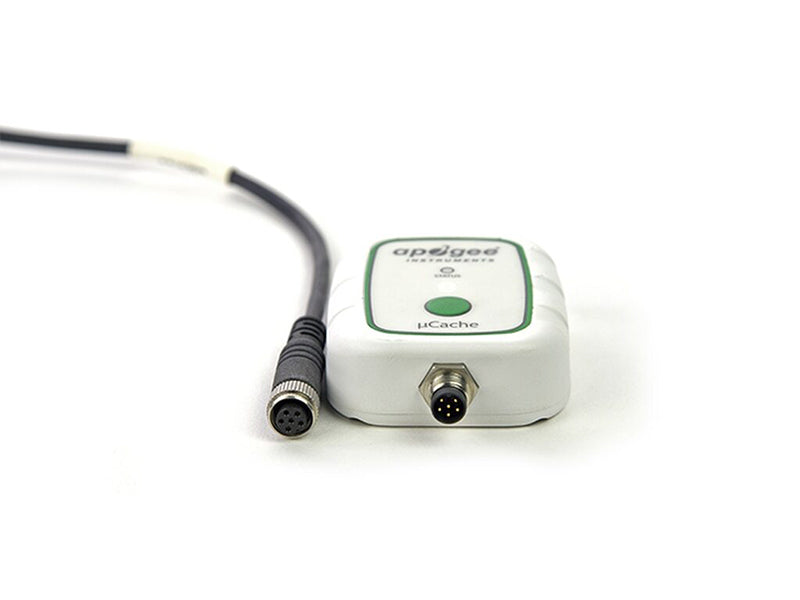

Connector Type: M8

Bluetooth Module: BMD-340 Contains FCC ID: 2AA9B10 IC: 12208A-10

ADC Resolution: 24 bits

Warranty: 4 years against defects in materials and workmanship
