Amp Split-core AC Current Transformer Sensor

Sensors

Amp Split-core AC Current Transformer Sensor

  • Vendor:Onset

Availability: Available Item
$126.00
Qty Price
Buy 1 $126.00 ea
Buy 10 $119.70 ea

Overview

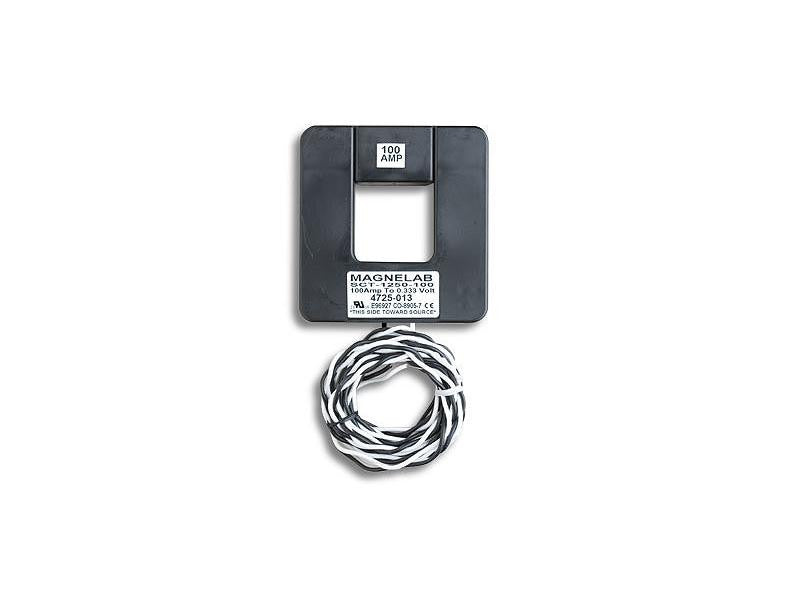

The Magnelab AC Current  Transformer or CT is mounted around a current carrying wire to measure AC Amperage. This CT provides 333mV output proportional to current and is used with the FlexSmart TRMS Module for True RMS measurement of sinusoidal and non-sinusoidal waveforms. The result is accurate current measurement for many types of equipment, including variable frequency drives and switched power sources. One or two CTs can be used with each FlexSmart TRMS Module.

Highlighted Features

  • Rated input from 10 to 100 AMP
  • Output 0.333 Volt AC at rated current
  • Linearity accuracy ± 1%
  • Accuracy at 10% to 130% of rated current
  • Split-core design for fast, easy installation
  • 8 ft. (2.44m) 22 AWG twisted pair leads
  • 1.25"? Opening

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

This sensor supports the following measurement: AC Current

  • Output 0.333 Volt AC at rated current
  • Operates from 30 Hz to 1,000 Hz
  • Phase angle < 2 degrees measured at 50% rated current
  • Linearity accuracy ± 1%
  • 8 ft. twisted-pair lead
  • UL, c(UL) recognized, CE, and RoHS compliant
  • Accuracy at 10% to 130% of rated current
  • Custom output and other parameters are available



  • Rated input from 0 Amp to 100 Amp
  • Width: 3.25 inches
  • Height: 3.35 inches
  • Thickness: 1.00 inches
  • Window: 1.25 inches



  • Rated input from 60 Amp to 600 Amp
  • Width: 4.75 inches
  • Height: 5.00 inches
  • Thickness: 1.20 inches
  • Window: 2.00 inches



  • Rated input from 20 Amp to 200 Amp
  • Width: 3.25 inches
  • Height: 3.35 inches
  • Thickness: 1.00 inches
  • Window: 1.25 inches
